1.8kg Weight Transmission Line Tool 240mm Hand Cable Wire Cutter For Copper

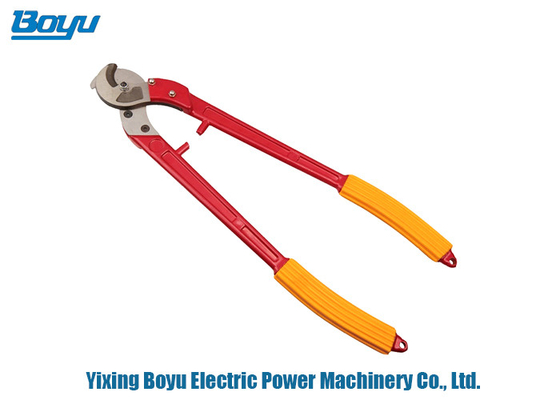

Large Image : 1.8kg Weight Transmission Line Tool 240mm Hand Cable Wire Cutter For Copper

Product Details:

Place of Origin:	China
Brand Name:	Boyu
Certification:	ISO9001
Model Number:	TYCC-250

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	Negotiable
Packaging Details:	Box
Delivery Time:	15~25 days
Payment Terms:	L/C, T/T
Supply Ability:	5000sets/month.

Contact Now

Detailed Product Description

Name:

Hand Cable Wire Cutter Copper

Cutting Range:

Max.240mm2 For Cu/Al Conductor

Length:

600mm

Weight:

1.8kg

Highlight:

transmission line hand cable cutter

transmission line hand wire cutter

240mm hand cable cutter

Transmission Line Tool Hand Cable Wire Cutter Copper

General features

Stripping thickness can be adjust
Blades can be changeable

Model	TYCC-250	TYCC-500
Cutting range	Max.240mm2 for Cu/Al conductor	Max.500mm2 for Cu/Al conductor
Length	600mm	810mm
Weight	1.8kg	2.75kg
Package	Carton	Carton
Note	Do not cut steel wire or reinforcing copper wire

The handle is made of high tensive aluminium alloy.

The knives are made by forging, long life span.

Model	TYKL-125	TYKL-250	TYKL-500
Cutting range	Max.120mm2 for aluminum conductor	Max.240mm2 for aluminum conductor	Max.500mm2 for aluminum conductor
Cutting range	Max.95mm2 for soft copper conductor	Max.185mm2 for soft copper conductor	Max.400mm2 for soft copper conductor
Length	350mm	540mm	690mm
Weight	0.57kg	1.43kg	2.45kg
Package	Paper box	Paper box	Paper box
