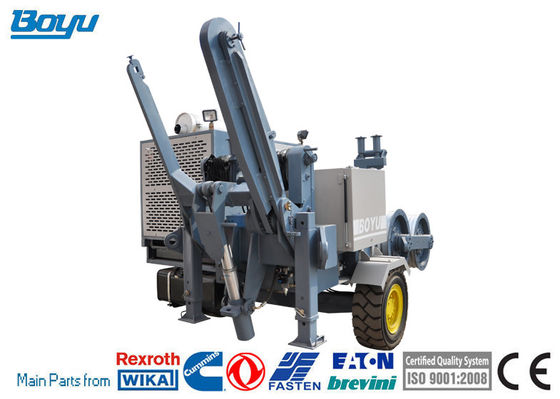

Cummins Engine 190kN Hydraulic Puller Conductor Stringing Equipment

Cummins Engine 190kN Hydraulic Puller Conductor Stringing Equipment
Cummins Engine 190kN Hydraulic Puller Conductor Stringing Equipment
video play

Large Image :  Cummins Engine 190kN Hydraulic Puller Conductor Stringing Equipment

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180-36
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Stringing Equipment Hydraulic Puller Max Pull: 190kN
Max Continuous Pull: 180kN Bull-wheel Diameter: 750mm
Groove Number: 10 Max Rope Diameter: 28mm
Max Diameter Of Rope Reel: 1400mm Overall Dimension (length*width*height): 5000x2300x2500mm
High Light:

Cummins Engine Hydraulic Puller


190kN Conductor Stringing Equipment


6km/h Conductor Stringing Equipment

Conductor Stringing Equipment Max Pull 190kN Hydraulic Puller Cummins Engine


TY180 Hydraulic Puller

The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains, suitable for use at altitudes up to 1500 meters above sea level.


Bull-wheel diameter: 750mm

Groove number: 10

Max rope diameter: 28mm

Max diameter of rope reel: 1400mm

Total weight: 6700kg

Overall dimension (length*width*height): 5000x2300x2500mm


Max pull: 190kN

Max continuous pull: 180kN

Speed at max pull: 2.5km/h

Max speed: 6km/h

Pull at max speed: 75kN


Diesel: 325hp Euro III, 4-stroke cycle, turbo-charged

Cooling system: liquid

Electrical system: 24V

Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German

Operating handle: German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.


Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer, Grounding connection point

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)

Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Cable and radio remote control fully replacing all controls at machine panel.

Remote diagnosis via GSM network with GPS modem, Synchronization system

Hydraulic system for drum stand control with flat face quick action couplings

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's workshop maintenance manual, in English

Manufacturer's recommended tools.

Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).


Cummins Engine 190kN Hydraulic Puller Conductor Stringing Equipment 0
