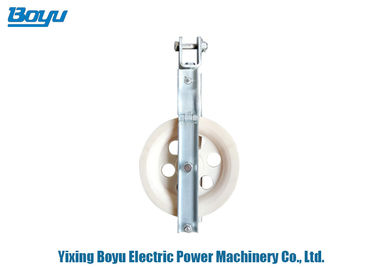

Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line

Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line
Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line

Large Image :  Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: SHDN-508X75
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 100000pieces per month
Detailed Product Description
Type: Single Wheel Conductor Pulley Wheel Size: 508*75mm
Conductor Size: <400mm2 Rated Load: 20kN
Weight: 18kg Wheel Material: Nylon
Highlight:

wire rope pulley block

,

conductor stringing block

Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line



Model

Wheel size Diameter x Width

(mm)

Conductor size

(mm2)

Rated load

(kN)

Weight

(kg)

Wheel material
SHD-120X30 120x30 25~70 5 2.1 Aluminum
SHD-160X40 160X40 95~120 10 3.1
SHD-200X40 200X40 150~240 15 3.7
SHD-200X60 200X60 150~240 15 4.1
SHD-250X40 250X40 150~240 20 5.1
SHD-250X60 250X60 300~400 20 5.4
SHD-270X60 270X60 300~400 20 6.7
SHD-320X60 320X60 300~400 20 10.4
SHD-400X80 400X80 400~500 20 11.9
SHDN-120X30 120x30 25~70 5 1.5 Nylon
SHDN-160X40 160X40 95~120 10 2.3
SHDN-200X40 200X40 150~240 15 2.5
SHDN-200X60 200X60 150~240 15 3.0
SHDN-250X40 250X40 150~240 20 3.6
SHDN-250X60 250X60 300~400 20 3.8
SHDN-270X60 270X60 300~400 20 4.3
SHDN-320X60 320X60 300~400 20 7.5
SHDN-400X80 400X80 400~500 20 8
SHD-508X75 508X75 ≤400 20 22.3 Aluminum
SHD-660X100 660X100 ≤500 20 30
SHDN-508X75 508X75 ≤400 20 18 Nylon
SHDN-660X100 660X100 ≤500 20 20
SHDN-822X110 830X110 ≤630 30 25
SHDN-916X110 916X110 ≤800 50 45
SHDN-1040X125 1040X125 ≤1000 55 105
SHDN-1160X150 1160X150 ≤1250 60 165
SHDNN-255X110 255X110 ≤630 100 77
SHDNN-325X150 325X150 ≤1520 120 85



Stringing Blocks Nylon Single Wheel Conductor Pulley For Transmission Line 0
