Yixing Boyu Electric Power Machinery Co.,LTD
Home ProductsTransmission Line Stringing Tools

Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2

China Yixing Boyu Electric Power Machinery Co.,LTD certification
China Yixing Boyu Electric Power Machinery Co.,LTD certification
We have some compliments for your products: The goods is eye-catching Label is very clear Your production is fast and on schedule You are enthus

—— Ms. Yen Purchasing Executive

I would like to tell you that I have already begun to distribute the catalog on the Egyptian companies to transfer electricity and all the companies

—— Mr. Mostafa Abolila

We have bought from you in the past and we are very satisfied with your quality and service. Now we need to order some more goods with you.

—— Mr. Pham Van Ha –Director

I'm Online Chat Now

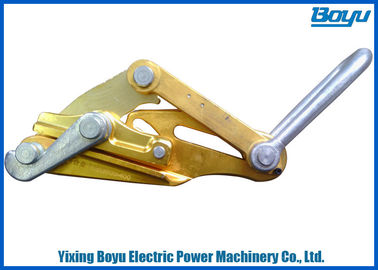

Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2

Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2
Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2

Large Image :  Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYSKL-40
Payment & Shipping Terms:
Minimum Order Quantity: 10set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port)
Detailed Product Description
Conductor Size (mm2): 300~400 Rated Load (kN): 40
Max. Opening (mm): 32 Weight (kg): 4.0
Type: Self Gripping Clamps Usage: Transmission Line Stringing Equipment Accessories & Tools
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment



High Strength Self Gripping Clamps Conductor 300~400mm2 Transmission Line Stringing Tools



Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Self Gripping Clamps
3. Rated Load: 40kN
4. Conductor size: 300~400mm2
5. Max. Opening: 32mm
6. Weight: 4.0kgs



Description:
The self gripping clamps can be use to anchor and to string conductor (aluminum, ACSR, copper...) and steel rope. The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.



Specification:

Model

Conductor size (mm2)

Rated load (kN)

Max. opening (mm)

Weight (kg)

SKL-7

25~70

7

14

1.0

SKL-15

95~120

15

18

1.4

SKL-25

150~240

25

22.5

3.0

SKL-40

300~400

40

32

4.0

SKL-50A

500

50

36

6.6

SKL-50B

630

50

36

6.6

SKL-60

720

60

38

9.2

SKL-70

900

70

42

14

SKL-80

1000

80

45

18

SKL-80A

1120

80

48

18



More Pictures

Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 0



Maufacturer Introduction

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near Shanghai City, about 3 hours by car.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Line Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.

History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.


Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.





Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 1Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 2Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 3



Work site

Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 4Conductor Transmission Line Stringing Tools Self Gripping Clamps Conductor 300~400mm2 5



High Strength Self Gripping Clamps Conductor 300~400mm2 Transmission Line Stringing Tools
