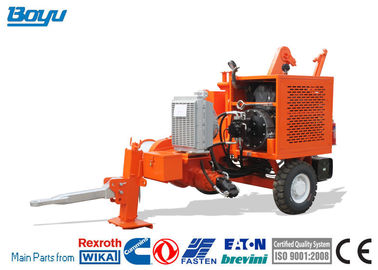

Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN

Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN
Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN
video play

Large Image :  Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY40-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Puller For Overhead Stringing Machine Max Intermittent Pull: 40kN
Max Continuous Pull: 30kN Diesel: 77kw(103hp)
Engine: Cummins Overall Dimension (length*width*height): 3600×2600×2200mm
Speed At Max Pull: 2.5km/h Total Weight: 3000kg
High Light:

transmission line construction equipment

,

conductor stringing equipment

Stringing Equipment Hydraulic Puller For Overhead Stringing Machine Max Intermittent Pull 40kN



TY40 Hydraulic Puller

Performance
Max intermittent pull 40kN
Max continuous pull 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Pull at max speed 20kN



Characteristics
Bull-wheel diameter 400mm
Groove number 7
Max rope diameter 16mm
Max diameter of rope reel 1200mm
Total weight 3000kg
Overall dimension (length*width*height) 3600×2600×2200mm



Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V



Main configuration
Engine Cummins
Hydraulic pump German Rexroth
Main motor German Rexroth
Speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German
Operating handle German Rexroth



Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Mechanical front stabilizer

Control instruments for hydraulic system and diesel engine

Grounding connection point

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200



Additional Devices

Lighting system for the trailer

Digital speed and meter counter (extra charge)

Trailer for towing at max speed of 30 km/h

Extra shaft

Hydraulic rope clamp for reel change

Swivel guide rope roller



Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN 0



Other Models
Model   TY60 TY120 TY150 TY220 TY280 TY380
Max intermittent pull KN 60 120 150 220 280 380
Max continuous pull KN 50 100 120 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5
Pull at max speed KN 25 50 60 90 120 170
Diesel kw(hp) 77(103) 129(173) 129(173) 239(320) 298(400) 440(590)
Cooling system   Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24
Bull-wheel diamete mm 450 600 600 760 960 960
Groove number   7 10 10 10 11 11
Max rope diameter mm 18 24 24 30 38 38
Max diameter of rope reel mm 1400 1400 1600 1600 1600 1900
Total weight kg 3500 4800 5500 6800 12800 13600
