Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale With Hand Dynamometer

Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer
Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer

Large Image :  Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale With Hand Dynamometer

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYSG-1T,2T,3T,5T,10T,20T,30T,50T
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100 sets/month
Price terms: FOB(Shanghai) or CIF (assigned port)
Detailed Product Description
OEM: Available After Sales Service: Available
Reading Accuracy: 0.2kg Weight Range: 0-50T
Measuring Temperture: 26 Degree C Safe Load: 125% Of Max. Capacity
Utmost Load: 400% Of Max. Capacity
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment



Industry Electronic Crane Scale Transmission Line Stringing Tools With Hand Dynamometer





Quick details:



1,Rugged construction

2,Accuracy: 0.1% of capacity

3,Low battery warning

4,Complete with plastic case, manual and calibrating certificate

5,Digits are 1 inch high for easy distant viewing

6,Wireless transmission distance: no less than 100 meters when unobstructed

7,Boyu Brand





Description:



Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard “LR6(AA)”size alkaline batteries.  All commonly used internationally recognized units are available : kg), t, lb, N and kN. Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.




Specification:



Model TYSG-1T TYSG-2T TYSG-3T TYSG-5T TYSG-10T TYSG-20T TYSG-30T TYSG-50T

Weight Range

0-+1T 0-2T 0-3T 0-5T 0-10T 0-20T 0-30T 0-50T

Reading Accuracy

0.2KG 0.5KG 0.5KG 1KG 2KG 10KG 10KG 20KG

Pan Diameter



245*112*37 260*123*37 160*123*37 285*123*37 320*120*57 375*128*74 420*138*82 465*150*104





Calibration Certificate:



Product:  Dyna link

Model:     DL-R-5

Series number: BMI052

Maximum capacity: 5000kg

Divison: d=2kg

Safe load: 125% of max. capacity

Utmost load: 400% of max. capacity

Accuracy grade: OIML III

Adjusted to gravitation: 9.793 m/s2

Measuring temperture: 26 degree C



Vertical load Display indication
Unit kg Unit kg
0 0
1000 1000
2000 2000
3000 3000
5000 4998

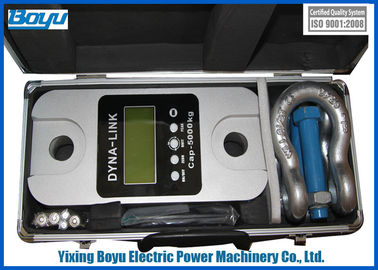

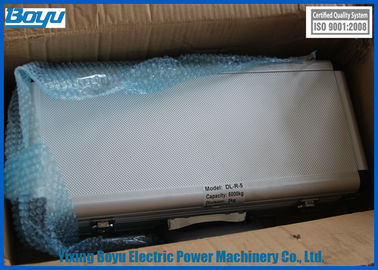

More Pictures



Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer 0

Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer 1

Safe Load 125% Of Max. Capacity Industry Electronic Crane Scale  With Hand Dynamometer 2





Maufacturer Introduction



Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near Shanghai City, about 3 hours by car.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Line Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.




Industry Electronic Crane Scale Transmission Line Stringing Tools With Hand Dynamometer
