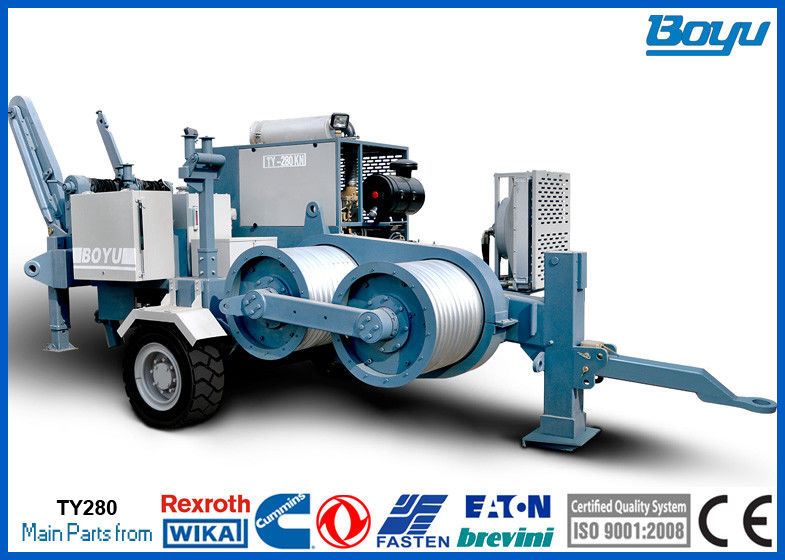

Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors

Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors
Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors

Large Image :  Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY280-11
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
Type: Hydraulic Puller Application: 4 Or 6 Bundled Conductors
Warranty: 1 Year Usage: Overhead Transmission Line
High Light:

conductor stringing equipment

,

overhead transmission line stringing equipment





280kN 28tons Overhead Transmission Line Stringing Equipment Hydraulic Puller TY280



Quick details:

  1. Overhead Tansmission Line Stringing Equipment
  2. Hydraulic Puller
  3. Max pull: 280kN 28T
  4. Max rope diameter: 38mm
  5. Max reel size: 1600mm
  6. Diesel: Cummins 298kw (400hp)
  7. Main pump and motor: German (Rexroth)
  8. Tail bracket hoisting motor: American (Eton)


Performance

  1. Max intermittent pull: 280kN
  2. Max continuous pull: 250kN
  3. Speed at max pull: 2.5km/h
  4. Max speed: 5km/h
  5. Pull at max speed: 120kN



Description
This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.


Engine

  1. Diesel 298kw(400hp)
  2. Cooling system water
  3. Electrical system 24V


Characteristics

  1. Bull-wheel diameter: 960mm
  2. Groove number: 11
  3. Max rope diameter : 38mm
  4. Max diameter of coupling: 100mm
  5. Electric system: 24V
  6. Max diameter of rope reel: 1600mm
  7. Total weight: 12800kg
  8. Overall dimension (length*width*height): 5800×2500×2850mm


Main configuration



Hydraulic meter: German

Tail bracket hoisting motor: American (Eton)

Engine: Cummins

Main pump: German (Rexroth)

Main motor speed reducer: German (Rexroth)

Main Valve German Rexroth


Configuration
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point


Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

Lighting system for the trailer
Hydraulic brake system for the trailer
Extra rollers for an additional pilot rope
Hydraulic rope clamp for reel change operations
Extra shaft
Electronic pull and speed recorder

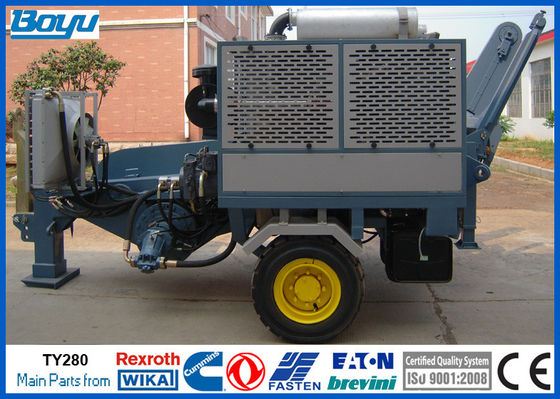

Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors 0


More pictures

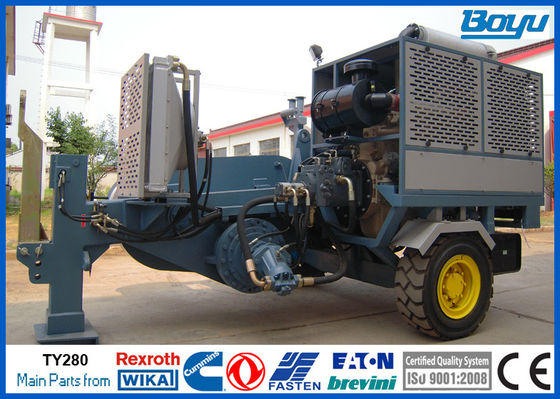

Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors 1


Company Introduction
Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors 2
Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors 3





Work Site

Hydraulic Transmission Line Stringing Equipment Puller Machine for Overhead High Voltage Conductors 4



280kN 28tons Overhead Transmission Line Stringing Equipment Hydraulic Puller TY280
