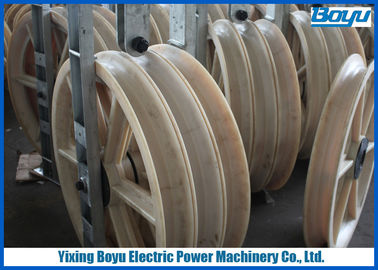

660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines

660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines
660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines 660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines 660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines 660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines

Large Image :  660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: SHSN-660x100

Payment & Shipping Terms:

Minimum Order Quantity: 10set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Supply Ability: 100sets/month.
Detailed Product Description
Color: Cream-colored Material: Nylon
Wheel Size Outside Dia. X Width (mm): 660x100 Conductor Size (mm2): ≤500
Rated Load (kN): 40 Weight (kg): 85
High Light:

line stringing pulley

,

conductor pulley



660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines



Quick details:
1. Transmission Line Stringing Accessories
2. Two or Three Bundled Conductor Lines
3. C
ustomizable Wheels

4. Nylon Wheels
5. Galvanized Steel Frame

6. Diameter: 660mm
7. Wheel Width: 100mm
8. With Rubber Covered or Without
9. Rated Load: 40kN

10. Conductor Size: under 500mm2

11. Boyu Brand



Specification:

660x100 Cream-colored Nylon Pulleys are suitable for string two or three bundled conductor lines



Performance Model Wheel size DiameterxWidth(mm) Conductor Size (mm2) Rated load (kN)

Weight

(kg)

Wheel material
SHS-508x75 508x75 ≤400 40 85.5

Middle Steel

Two Nylon

SHS-660X100 660x100 ≤500 20 106
SHSN-508x75 508x75 ≤400 40 60 Nylon
SHSN-660x100 660x100 ≤500 40 85
SHSN-822x110 822x110 ≤630 60 100
SHSN-916x110 916x110 ≤800 80 140
SHSN-1040x125 1040x125 ≤1000 110 210
SHSNN-255x110 255x110 ≤630 50 120
SHSNN-325x150 325x150 ≤1520 120 165



660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines 0





Company introduction

660x100 White Nylon Pulleys For String Two Or Three Bundled Conductor Lines 1


Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets.

Now our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
