| Mass: | 45kg | Product: | Wire Rope Winch Tirfor Wire Grip Pullers |
|---|---|---|---|
| Rope Diameter: | 20mm | Lifting Capacity: | 54kN |
| Pulling Capacity: | 80kN | Rope Length: | 10m |
| High Light: | overhead transmission line stringing tools,transmission line stringing tools for overhead,transmission overhead line stringing tools |
||

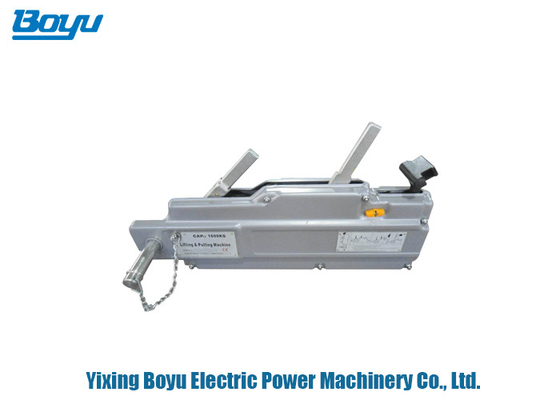

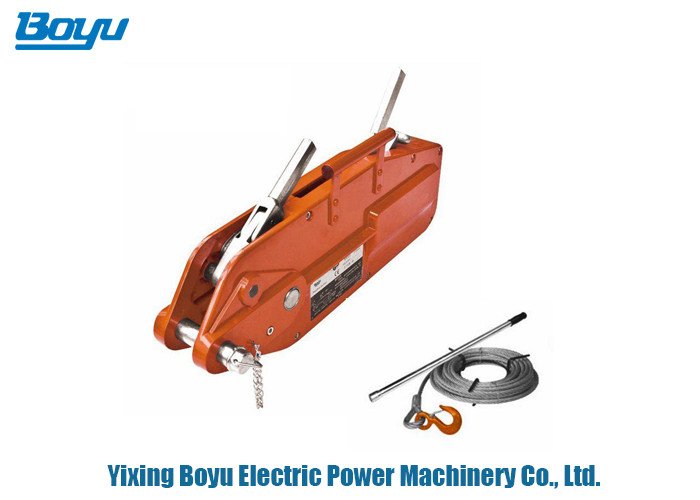

Transmission Line Stringing Tools Wire Rope Winch Tirfor Wire Grip Pullers
| Model | Lifting capacity (kN) | Pulling capacity (kN) | Rope diameter (mm) | Rope length (m) | Mass (kg) |
| TFX-8 | 8 | 12.5 | 8 | 20 | 6 |
| TFX-10 | 10 | 15 | 8 | 20 | 6 |
| TFX-16 | 16 | 25 | 11 | 20 | 12 |
| TFX-32 | 32 | 50 | 16 | 10 | 23 |
| TFX-54 | 54 | 80 | 20 | 10 | 45 |
|
|||||
| Scope of application | |||||
|
The wire rope hoist is adapted for use in narrow areas where local space is limited. For field work, high altitude operation, BYSM-618 1.0 type steel wire rope hand plate hoist deep well operation and no mechanical and electrical energy supply site for lifting operation will show special advantages. |
|||||
| Working principle | |||||
|
Wire rope hand lever hoist is a manpower wrench handle, with the help of the lever principle to obtain a straight line traction matching the load, alternately acting on a clamp body of the machine core load, running with a supporting load. |
|||||
