Powerful Wire Grip Pullers For Pulling And Tensioning Wire Ropes Manual Winches

Powerful Wire Grip Pullers For Pulling And Tensioning Wire Ropes Manual Winches
Powerful Wire Grip Pullers For Pulling And Tensioning Wire Ropes Manual Winches Powerful Wire Grip Pullers For Pulling And Tensioning Wire Ropes Manual Winches

Large Image :  Powerful Wire Grip Pullers For Pulling And Tensioning Wire Ropes Manual Winches

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TYTFX-10
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 10000pieces/month.
Contact Now
Detailed Product Description
Rope Diameter: 8mm Lifting Capacity: 10kN
Mass: 6kg Product: Wire Grip Pullers For Pulling And Tensioning Wire Ropes
Pulling Capacity: 15kN Rope Length: 20m
High Light:

powerful transmission line stringing tools

,

durable transmission line stringing tools

,

powerful overhead line stringing tools

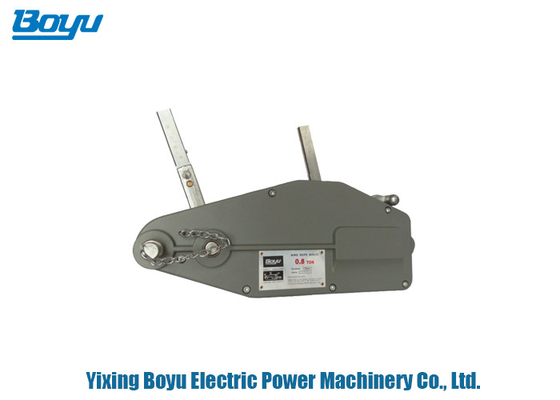

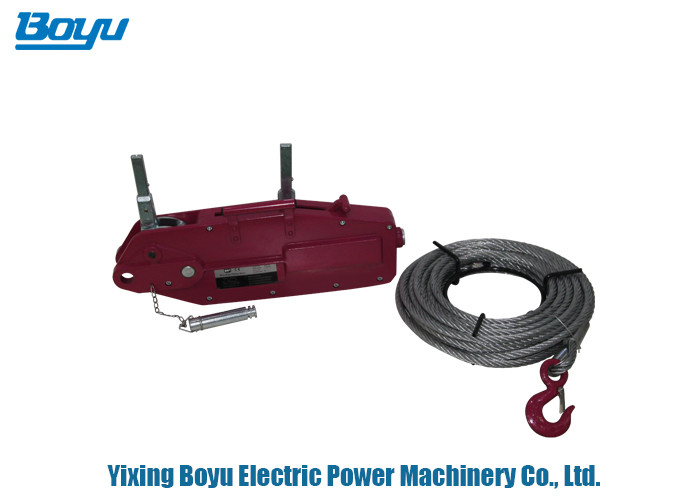

Wire Grip Pullers for Pulling and Tensioning Wire Ropes Manual Winches



TYTFX Rope Pulling Hoist
  • This is designed to pull or lift ropes, conductors or loads.
Model Lifting capacity (kN) Pulling capacity (kN) Rope diameter (mm) Rope length (m) Mass (kg)
TFX-8 8 12.5 8 20 6
TFX-10 10 15 8 20 6
TFX-16 16 25 11 20 12
TFX-32 32 50 16 10 23
TFX-54 54 80 20 10 45
Scope of application:
  • The wire rope hoist is adapted for use in narrow areas where local space is limited.
  • For field work, high altitude operation, BYSM-618 1.0 type steel wire rope hand plate hoist deep well operation and no mechanical and electrical energy supply site for lifting operation will show special advantages.
The body structure is novel:
  • The machine adopts cast aluminum alloy body with beautiful appearance, compact body, small volume and light weight.
  • Adopt two-stage gear transmission, high-speed helical gear transmission, so the transmission is stable and the noise is small.
Working principle:
  • Wire rope hand lever hoist is a manpower wrench handle, with the help of the lever principle to obtain a straight line traction matching the load, alternately acting on a clamp body of the machine core load, running with a supporting load.



Powerful Wire Grip Pullers For Pulling And Tensioning Wire Ropes Manual Winches 0

Tag:

transmission line construction equipment,

overhead transmission line stringing equipment,

overhead line tools
