Product Details:
Payment & Shipping Terms:
|
Product: | Cable Pulling Stocking Grips Connedtion Grips | Conductor Size: | 300-400mm2 |
---|---|---|---|
Rated Load: | 30kN | Breaking Load: | 60kN |
High Light: | transmission line stringing tools safe,innovative transmission line stringing tools,convenient overhead line stringing tools |
Transmission Line Stringing Tools Cable Pulling Stocking Grips Connedtion Grips

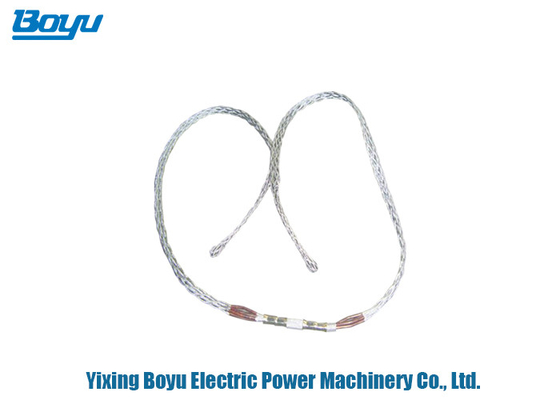

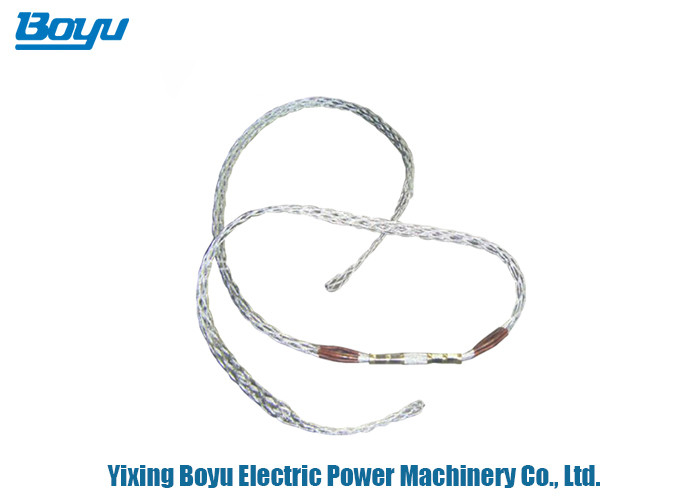

TYSLW Temporary Mesh Sock Joints
DOUBLE HEAD TYPE
The double head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
Model | Conductor size (mm2) | OPGW Dia.(mm) | Rated load (kN) | Breaking load (kN) |
SLW-1 | 25-70 | 6-11 | 10 | 20 |
SLW-1.5 | 70~90 | 11-16 | 15 | 30 |
SLWS-2 | 120~150 | 20 | 40 | |
SLWS-2.5 | 185~240 | 25 | 50 | |
SLWS-3 | 300~400 | 30 | 60 | |
SLWS-4 | 500~630 | 40 | 80 | |
SLWS-5 | 720 | 50 | 125 | |
SLWS-7 | 900 | 70 | 175 | |
SLWS-8 | 1000~1120 | 80 | 200 |
