Product Details:
Payment & Shipping Terms:
|
Product: | Connedtion Grips Two Open Ends | Conductor Size: | 120-150mm2 |
---|---|---|---|
Rated Load: | 20kN | Breaking Load: | 40kN |
High Light: | versatile transmission line stringing tools,high efficiency transmission line stringing tools,innovative overhead line stringing tools |

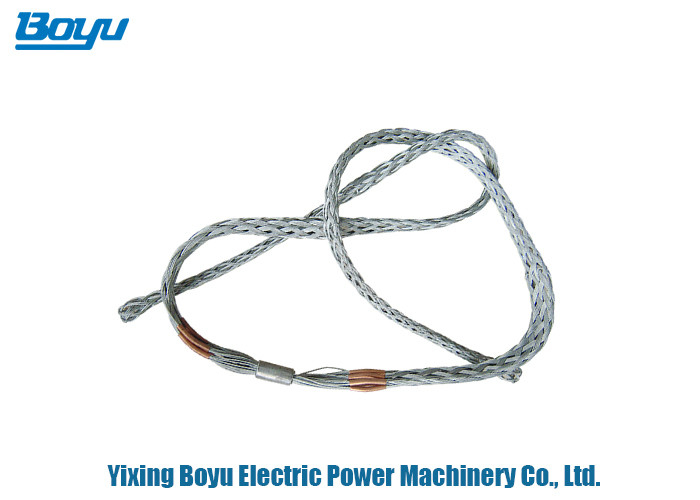

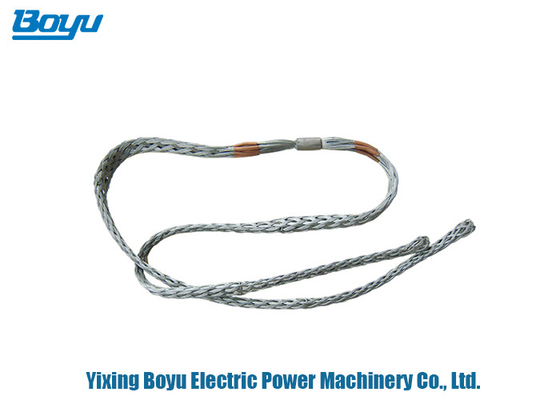

Transmission Line Stringing Tools Connedtion Grips Two Open Ends
TYSLW Temporary Mesh Sock Joints DOUBLE HEAD TYPE The double head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor. |
||||
Model | Conductor size (mm2) | OPGW Dia.(mm) | Rated load (kN) | Breaking load (kN) |
SLW-1 | 25-70 | 6-11 | 10 | 20 |
SLW-1.5 | 70~90 | 11-16 | 15 | 30 |
SLWS-2 | 120~150 | 20 | 40 | |
SLWS-2.5 | 185~240 | 25 | 50 | |
SLWS-3 | 300~400 | 30 | 60 | |
SLWS-4 | 500~630 | 40 | 80 | |
SLWS-5 | 720 | 50 | 125 | |
SLWS-7 | 900 | 70 | 175 | |
SLWS-8 | 1000~1120 | 80 | 200 |
