Product Details:
Payment & Shipping Terms:
|
| Type: | Temporary Mesh Sock Joints Pulling Grips | Conductor Size: | 25-70mm2 |
|---|---|---|---|
| OPGW Dia.: | 6-11mm | Rated Load: | 10kN |
| High Light: | transmission line stringing tools safe,versatile transmission line stringing tools,versatile overhead line stringing tools |
||

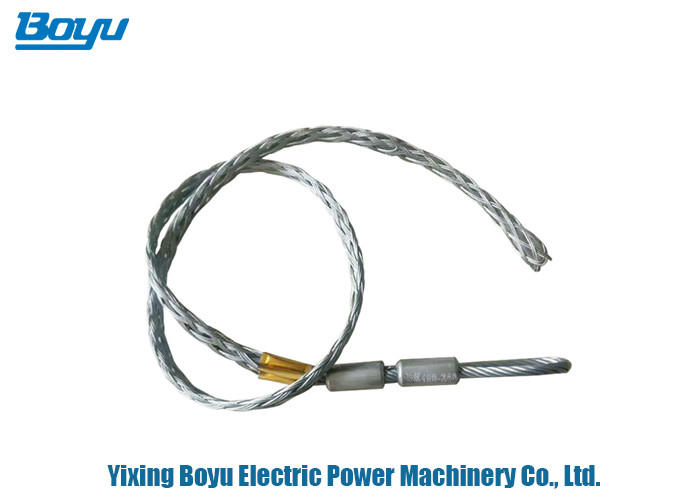

Transmission Line Stringing Tools Temporary Mesh Sock Joints Pulling Grips
|
ONE HEAD TYPE The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor. |
||||
| Model | Conductor size (mm2) | OPGW Dia.(mm) | Rated load (kN) | Breaking load (kN) |
| SLW-1 | 25-70 | 6-11 | 10 | 20 |
| SLW-1.5 | 70~90 | 11-16 | 15 | 30 |
| SLW-2 | 120~150 | 14.5-17.5 | 20 | 40 |
| SLW-2.5 | 185~240 | 18-22.5 | 25 | 50 |
| SLW-3 | 300~400 | 23-29 | 30 | 60 |
| SLW-4 | 500~630 | 30-35 | 40 | 80 |
| SLW-5 | 720 | 50 | 125 | |
| SLW-7 | 900 | 70 | 175 | |
| SLW-8 | 1000~1120 | 80 | 200 | |
