Product Details:
Payment & Shipping Terms:
|
| Product: | TYGXK High Strength Shackle | Dimensions A: | 55mm |
|---|---|---|---|
| Rated Load: | 10kN | Weight: | 0.15kg |
| High Light: | High Strength transmission line stringing tools,Shackle transmission line stringing tools,high load overhead line stringing tools |
||

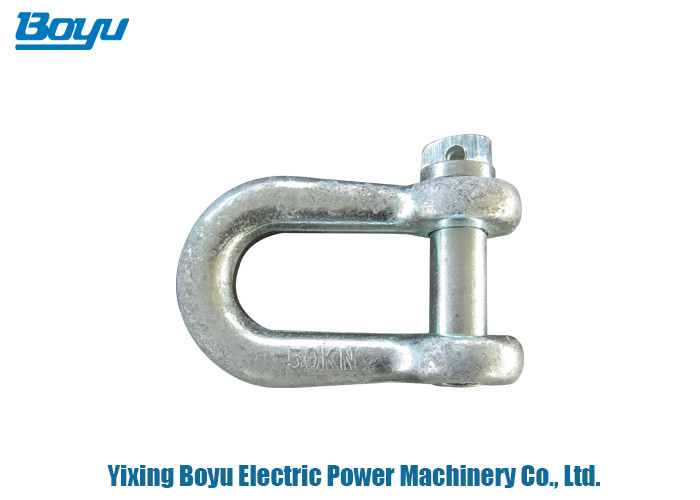

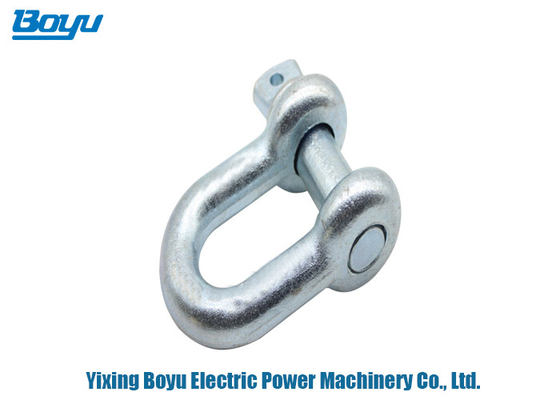

Transmission Line Stringing Tools TYGXK High Strength Shackle
| TYGXK High strength Shackle | ||||||
| Model | Dimensions (mm) | Rated load | Weight | |||
| A | B | C | D | (kN) | (kg) | |
| GXK-1 | 55 | 42 | 12 | 20 | 10 | 0.15 |
| GXK-2 | 67 | 58 | 16 | 24 | 20 | 0.29 |
| GXK-3 | 97 | 82 | 20 | 34 | 30 | 0.8 |
| GXK-3A | 97 | 112 | 20 | 34 | 30 | 0.9 |
| GXK-5 | 107 | 89 | 22 | 38 | 50 | 1.12 |
| GXK-5A | 107 | 131 | 22 | 38 | 50 | 1.29 |
| GXK-8 | 128 | 97 | 30 | 45 | 80 | 2.4 |
| GXK-10 | 141 | 114 | 34 | 48 | 100 | 3.56 |
| GXK-16 | 152.5 | 139 | 37 | 54 | 160 | 4.8 |
| GXK-20 | 164 | 140 | 39 | 60 | 200 | 5.17 |
| GXK-30 | 186 | 146 | 50 | 69 | 300 | 7.5 |
