Product Details:
Payment & Shipping Terms:
|
| Wheel Size Outside Dia. X Width: | 916X110mm | Rated Load: | 80kN |
|---|---|---|---|
| Product: | Galvanized Steel Frame 3 Sheels Pulley | Wheel Material: | Nylon |
| High Light: | galvanized bundled conductor pulley assembly,3 wheels bundled conductor pulley assembly,3 wheels bundled conductor sheave |
||

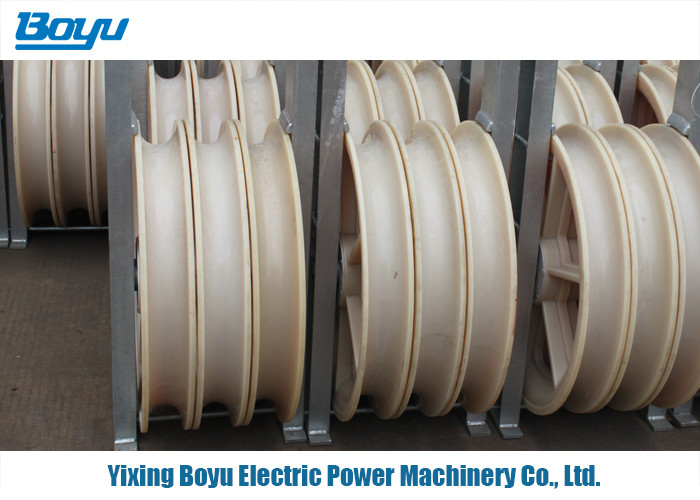

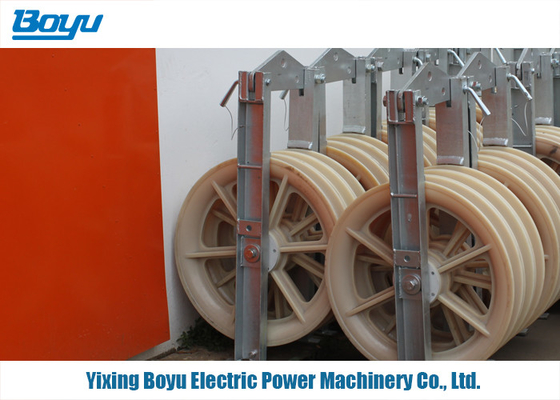

Bundled Conductor Pulley Galvanized Steel Frame 3 Sheels Pulley
TYSHS Three Conductor Pulleys
The pulleys are suitable for string two or three bundled conductor lines.
| Model |
Wheel size Outside Dia. x Width (mm) |
Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHS-508X75 | 508X75 | ≤400 | 40 | 85.5 |
Middle steel Two Nylon |
| SHS-660X100 | 660X100 | ≤500 | 20 | 106 | |
| SHSN-508X75 | 508X75 | ≤400 | 16 | 42 | Nylon |
| SHSN-508X100 | 508X100 | ≤400 | 25 | 47 | Nylon |
| SHSN-660X100 | 660X100 | ≤500 | 40 | 85 | Nylon |
| SHSN-822X110 | 822X110 | ≤630 | 60 | 100 | Nylon |
| SHSN-916X110 | 916X110 | ≤800 | 80 | 140 | Nylon |
| SHSN-1040X125 | 1040X125 | ≤1000 | 110 | 210 | Nylon |
| SHSN-1160X150 | 1160X150 | ≤1250 | 120 | 245 | Nylon |
| SHSNN-255X110 | 255X110 | ≤630 | 50 | 120 | Nylon |
| SHSNN-325X150 | 325X150 | ≤1250 | 120 | 165 | Nylon |
