| Product: | Aluminum Suspension Ladder | Length: | 2.5m |
|---|---|---|---|
| Working Load: | 150kg | Weight: | 5.0kg |
| High Light: | Aluminum transmission line stringing tools,Hook transmission line stringing tools,Aluminum overhead line stringing tools |
||

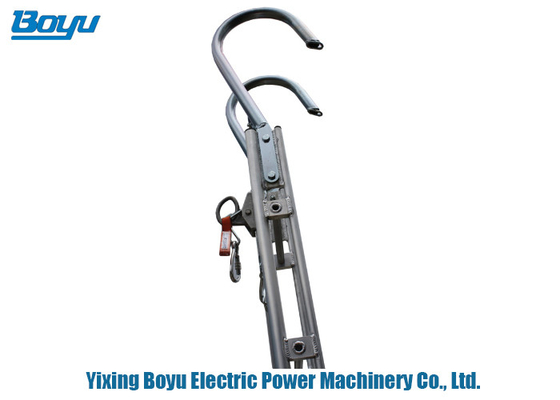

Transmission Line Stringing Tools Aluminum Suspension Ladder Hook
Aluminum alloy ladder, light and easy to carry, "D" shaped antiskid pedal, Utility pole antiskid strip with upper hook
SUSPENSION LADDER

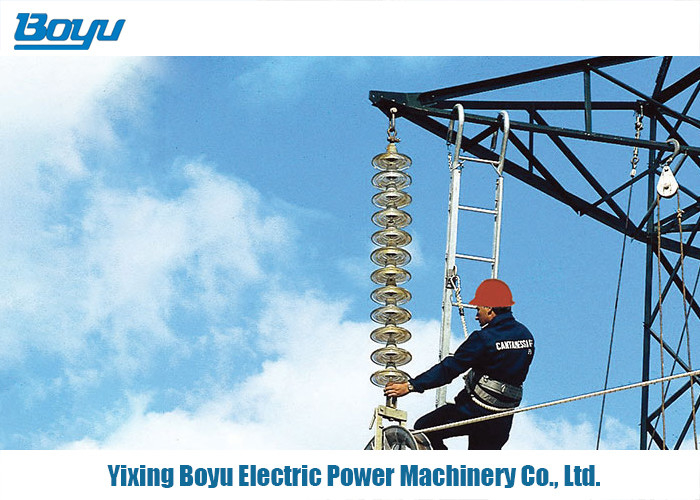

For vertical use at the suspension tower
Welded suspension ladder made of extruded aluminum pipes
Fluted rungs
Tower hook of galvanized steel with safety chain
Optional
Guide rail on the left for fall protection system
Fall protection
| Model | Length (m) | Section length (m) | Working load (kg) | Weight (kg) |
| P-LGS-25 | 2.5 | 150 | 5.0 | |
| P-LGS-30 | 3 | 5.5 | ||
| P-LGS-35 | 3.5 | 6.1 | ||
| P-LGS-40 | 4 | 6.6 | ||
| P-LGE-40S | 4 | 2.7 | 13 | |
| P-LGE-50S | 5 | 3.7 | 15 | |
| P-LGE-60S | 6 | 3.9 | 18 | |
| P-LGE-70S | 7 | 4.2 | 20 |
