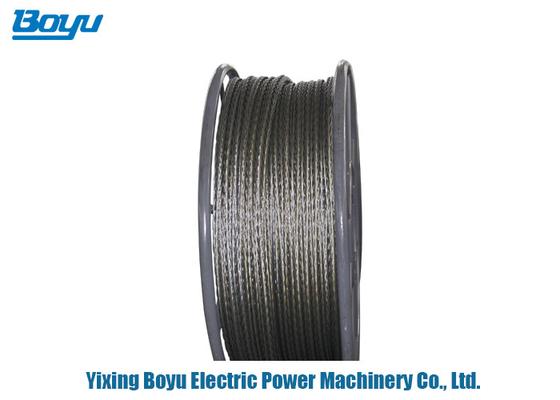

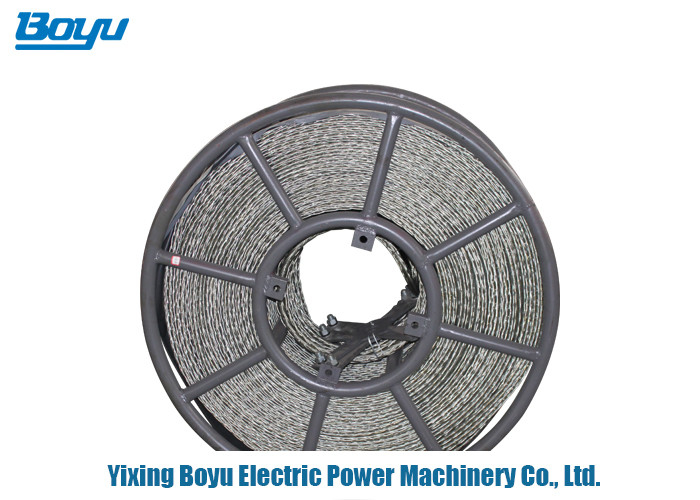

Pulling Anti Twist Wire Cable Ropes Heavy Duty Braided Steel Wire

Pulling Anti Twist Wire Cable Ropes Heavy Duty Braided Steel Wire
Pulling Anti Twist Wire Cable Ropes Heavy Duty Braided Steel Wire Pulling Anti Twist Wire Cable Ropes Heavy Duty Braided Steel Wire

Large Image :  Pulling Anti Twist Wire Cable Ropes Heavy Duty Braided Steel Wire

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: YL10-12x19W
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 1000000meters/month.
Detailed Product Description
Normal Diameter: 10mm Diameter Of Spool: 1000mm
Product: Pulling Ropes Heavy Duty Braided Steel Breakage Tension: 67kN
Standard Length: 1000m Structure: 12 Strands
High Light:

pulling anti twist wire cable

,

heavy duty anti twist wire cable

,

transmission line anti twist wire cable

Anti Twist Wire Rope Pulling Ropes Heavy Duty Braided Steel Wire



TYFUX Anti-twisting Steel Braided Rope

Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.



Item no. Normal Diameter (mm) Structure Breakage tension(kN) Standard Length (m)

Diameter of spool

(mm)

Total weight

(kgs)

Empty spool weight

(kgs)

YL9-12x19W 9 12 Strands 55 1000 850 294 32
YL10-12x19W 10 12 Strands 67 1000 1000 390 47
YL11-12x19W 11 12 Strands 80 1000 1000 454 47
YL12-12x19W 12 12 Strands 100 1000 1100 552 52
YL13-12x19W 13 12 Strands 120 1000 1100 642 52
YL16-12x19W 16 12 Strands 158 1000 1250 886 60
YL18-12x19W 18 12 Strands 210 1000 1400 1154 74
YL20-12x29Fi 20 12 Strands 250 1000 1400 1394 74
YL22-12X29Fi 22 12 Strands 320 1000 1400 1258 74
YL24-12x29Fi 24 12 Strands 360 800 1440 1474 78
YL26-12x29Fi 26 12 Strands 420 700 1440 1723 78
YL28-12x29Fi 28 12 Strands 480 500 1600 1401 116
YL30-12x29Fi 30 12 Strands 540 500 1600 1666 116
YL20-18x19W 20 18 Strands 300 1000 1440 1368 78
YL22-18X29Fi 22 18 Strands 389 800 1440   78
YL24-18x29Fi 24 18 Strands 440 800 1440   78
YL28-18x29Fi 28 18 Strands 580 500 1600 1655 116
YL30-18x29Fi 30 18 Strands 658 500 1600 1900 116
