Product Details:
Payment & Shipping Terms:
|
| Wheel Size Diameter X Width: | 916X110mm | Wheel Material: | Nylon |
|---|---|---|---|
| Weight: | 45kg | Product: | Nylon Wire Pulley-Block For Stringing |
| Conductor Size: | ≤800mm2 | Rated Load: | 50kN |
| High Light: | nylon Bundled conductor pulley device,stringing Bundled conductor pulley device,stringing bundled conductor sheave |
||

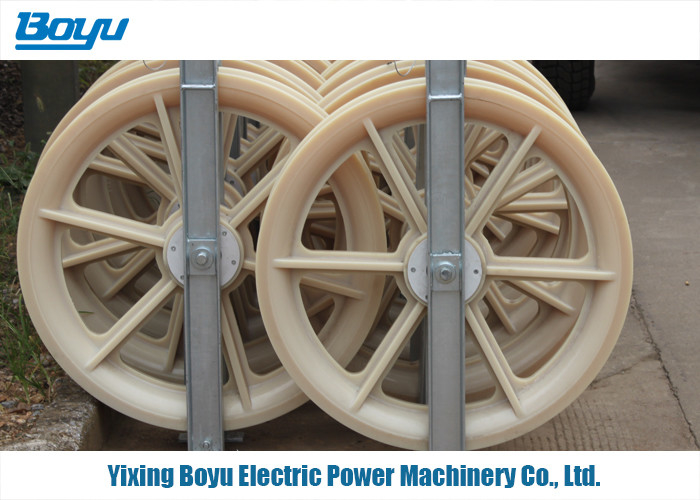

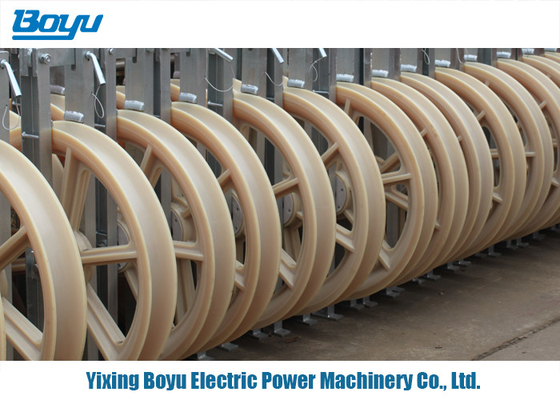

Bundled Conductor Pulley Nylon Wire Pulley-Block for Stringing
| TYSHD Single Conductor Pulleys | |||||
| Model |
Wheel size Diameter x Width |
Conductor size | Rated load | Weight | Wheel material |
| (mm) | (mm2) | (kN) | (kg) | ||
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | Aluminum |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | Nylon |
| SHDN-822X110 | 822X110 | ≤630 | 30 | 25 | Nylon |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | Nylon |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 | Nylon |
| SHDN-1160X150 | 1160X150 | ≤1250 | 45 | 155 | Nylon |
| SHDNN-255X110 | 255X110 | ≤630 | 100 | 77 | Nylon |
| SHDNN-325X150 | 325X150 | ≤1520 | 120 | 85 | Nylon |
| Wheel material aluminum or Nylon, and it could be covered by rubber. | |||||
