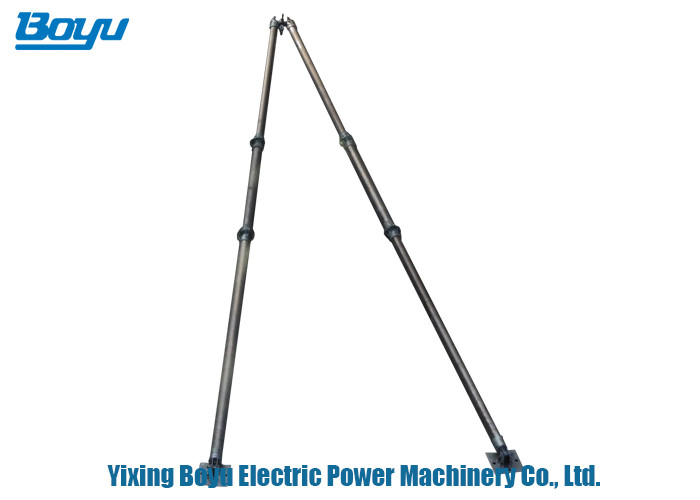

Transmission Line Stringing Tools A-Shape Tubular Tower Gin Pole
Aluminum alloy A-shape tubular gin pole with manual winch for small pole erection is used for small pole erection in line construction.
A-Shape Tubular Electric Power Gin Pole Stringing Equipment Aluminum Extension Pole
A-Shape Tubular Tower Gin Pole Use and Characteristics
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.
The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
| A-Shape Tubular Gin Pole | |||||
| Uses: Apply to set up small single pole in transmission line construction or lifts light weight parts.Explain: The head part of the Gin Poles is inverted,and it should be noted when ordering. | |||||
| Model | Length(M) | Diameter*wall (mm) | Vertical Load (KN) | Safety Factor (K) | Weight (kg) |
| LBGR120A | 6-9 | 120X7 | 17-30 | 2.5 | 7.5 |
| LBGR150A | 8-13 | 150X6 | 13-31 | 2.5 | 8 |
1.The maximum output force of the manual winch is 5KN.
2.Use high strength aluminum alloy tube as main materials, steel parts are galvanized.

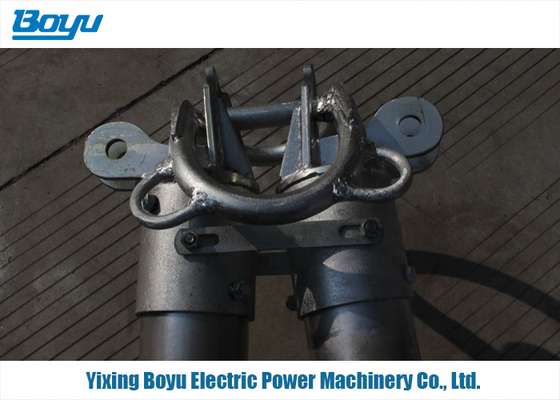

3.Fixed style head part mounted with tri-pullsy.
4.The safety factor is 2.5.
5.Recommend using 7mm steel wire rope, the workable length is 9 times the length of the gin pole.
6.Recommend using iron hoisting block.
