Product Details:
Payment & Shipping Terms:
|
| Block Passed Diameter Range(mm): | φ9-φ13 | Maximum Creeping Angle (°): | 31 |
|---|---|---|---|
| Type: | Self-Moving Traction Machine | Driving Dynamo Type: | 100YYJ140-3(140W) |
| Remote Control Linear Distance(m): | 300~500 | Dimension (mm): | 422x480x758 |
| High Light: | Self Moving Stringing Tools Traction Machine,422 x 480 x 758 Self-Moving Traction Machine,140W Self-Moving Traction Machine |
||

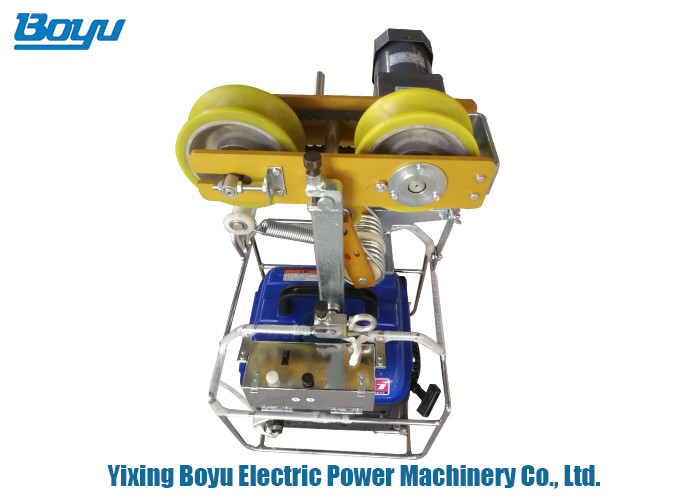

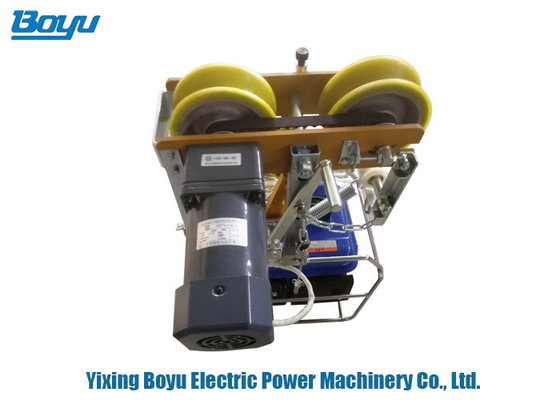

Transmission Line Stringing Tools Self-Moving Traction Machine With Engine
| Model | BZZCS350 |
| Block passed diameter range(mm) | φ9-φ13 |
| Maximum creeping angle (°) | 31 |
| Gasoline engine | YAMAHAET950 |
| Driving dynamo type | 100YYJ140-3(140W) |
| Remote control linear distance(m) | 300~500 |
| Dimension (mm) | 422x480x758 |
| Running speed (m/min) | 17 |
| Horizontal pull (N) | 350 |
| Weight (kg) | 46.5 |
Description:
The self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another.
It is always used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.
Advantages:
1.Self driving by gasoline engine
2.Electric motor system.
3. Automatic brake system for emergency stop
4. Remote control system for controlling the machine on overhead line.
5.Special Mechanical system for preventing reverse driving of machine.
6.Easy operation
Remarks:
We have developed whole set of machines and tools for OPGW line installation.
