| Product: | Hydraulic Hole Opener | Punching Range: | φ16mm-φ51mm |
|---|---|---|---|
| Max Thickness Of Plate: | 3.5mm Mild Steel | Punching Force: | 100KN |
| Stroke: | 25mm | Weight: | Approx.N.W 5.6KG |
| High Light: | Hydraulic Transmission Line Stringing Tools,51mm Transmission Line Stringing Tools,100KN Transmission Line Stringing Tools |
||

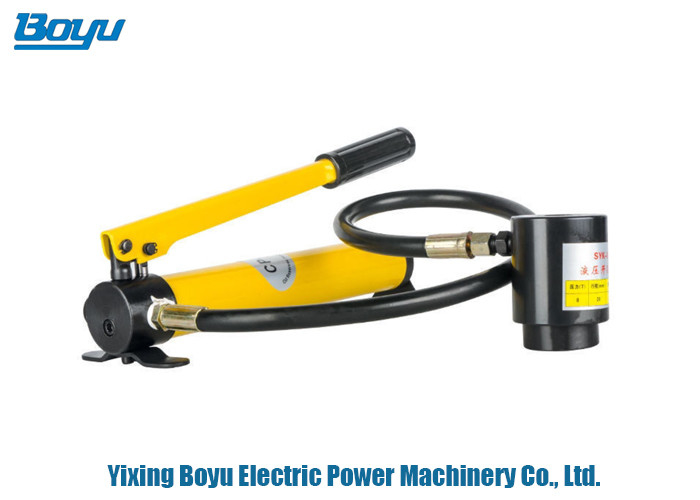

Transmission Line Stringing Tools Hydraulic Hole Puncher Punching Range 16-51mm
| Model | BSYK-8A | BSYK-8B | BSYK-15 |
| Punching range | φ16mm-φ51mm | φ22mm- φ60mm | φ63mm- φ114mm |
| Max thickness of plate | 3.5mm mild steel | 3.5mm mild steel | 3.5mm mild steel |
| Punching force | 100KN | 100KN | 150KN |
| Stroke | 25mm | 25mm | 25mm |
| Weight |
approx.N.W 5.6KG G.W 9.25KG
|
approx.N.W 5.6KG G.W 9.5KG |
approx.N.W 16KG G.W 20KG |
| Package | plastic box | plastic box | steel case |

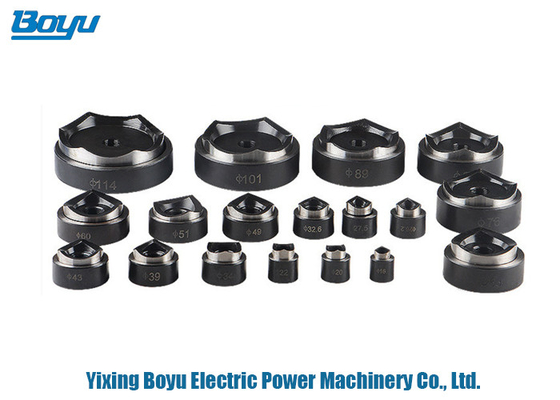

| Round type dies | φ16mm ,φ20mm , φ26.2mm, φ35.2mm, φ39mm, φ51mm | Φ22mm,φ27.5mm,φ34mm, φ43mm, φ49mm, φ60mm | Φ63mm ,φ76mm , φ90mm, φ101mm, φ114mm |
FUNCTION:
1.Compact, light, fast. It could be used on carbon steel plate for digging round and square holes in 3.5mm or below. It could also be used with other specific dies of hole digger. The solid positioning drive lead to approach working point easily.
2.Wide hole digging range. It could be used on switchboard, power transmission panel, meter plate, steel plate to dig hole or punch hole.Operate conveniently, punched holes smooth without burr.
3.It covers six kinds of dies, two bolts, one washer, hole digger unit and plastic carrying case.
4.It could be used for digging square hole if fitted with square dies. Any specific size of round and square dies could be ordered.
5.Can be used for metallurgy , petroleum, chemical, electronics, electrical, machinery and other industries to install and repair the opening of wire and pipe, indicator light, instrument witch and so on.
6.For the panel of the switch box and so on, the surface of the paint will not be damaged after the perforation.
