Product Details:
Payment & Shipping Terms:
|
| Product: | Optical Cable Pulling Machine | Start Type: | Hand Rope Start |
|---|---|---|---|
| Maximum Diameter(mm): | 50mm | Traction Force (KN): | ≥2KN |
| Traction Speed (m/min): | 30-80 M/min Adjustable | Maximum Power Of Gasoline Engine (KW): | 4.78KW |
| High Light: | Electronic Fiber Optic Cable Pullers,Optical Cable Pulling Machine 50mm,80m/min Optical Cable Pulling Machine |
||

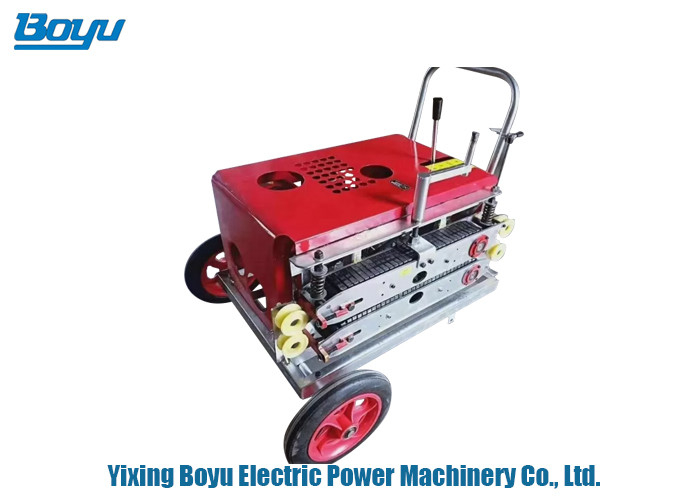

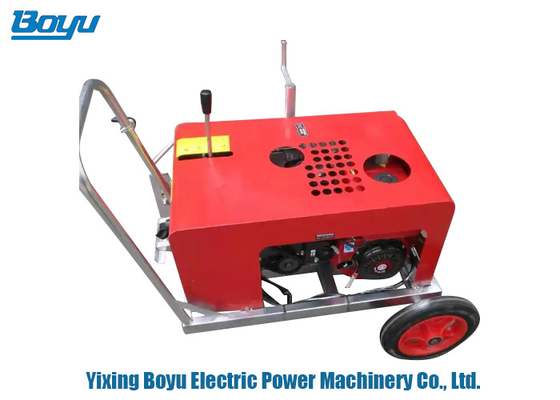

Transmission Line Stringing Tools Electronic Fiber Optic Cable Pullers Tractor
| Model | BGLQYS | BGLQYD |
| Start type | Hand rope start | Electric start |
| Maximum diameter(mm) | 50mm | |
| Traction force (KN) | ≥2KN | |
| Traction speed (m/min) | 30-80 m/min adjustable | |
| Maximum power of gasoline engine (KW) | 4.78KW | |
Uses:
The optical cable traction machine is suitable for 4-288 core optical cable, 7*2.6mm steel stranded wire , 4*35mm2 cable.
It is used for long distance transmission of large section cable, especially suitable for long distance laying of various types of cables such as tunnel, pipe row, directly buried, etc.
Introduction:
This machine is mainly composed of three parts: engine, gearbox and transmission device. The jaws of the transmission device are opened and closed up and down to make way for the cables to be effectively retracted and released freely. The traction machine uses the electric motor as the power source. The main shaft gear chain is driven by the gearbox. The chain engages the transmission device and drives the transmission belt to achieve linear motion. The machine is also equipped with a support rod to support the reaction force of the cable during machine operation and maintain the transmission line. The machine does not move while the cable is being cabled.
Advantage:
Optical cable traction equipment can save artificial 2 people, tensile force is equivalent to 4-5 adult tensile force, can push threader, can pull optical cable, can be overhead, can be buried construction operation, does not hurt the cable.It can reduce construction cost and improve construction efficiency.
Packing details: Standard export wooden case packing for Optical cable tractor
