| Line Current Range: | 15 To 120 MA | DC Resistance ( Talk Mode): | 270 (typically) Out 20 MA |
|---|---|---|---|
| Monitor Mode Impedance: | 120 K , 300 - 3400 KHZ | Rotary Dial Pulse Rate: | 10 + Or - 1 Pulse Per Second |
| DTMF ( Dual-tone Multi Frequency): | + Or - 1.5% Maximum | Type: | Telephone Test Set |
| High Light: | 120 mA Stringing Telephone Test Set,P-MT-8100 Telephone Test Set,3400 KHZ Telephone Test Set |
||
Transmission Line Stringing Tools P-MT-8100 Telephone Test Set
Description

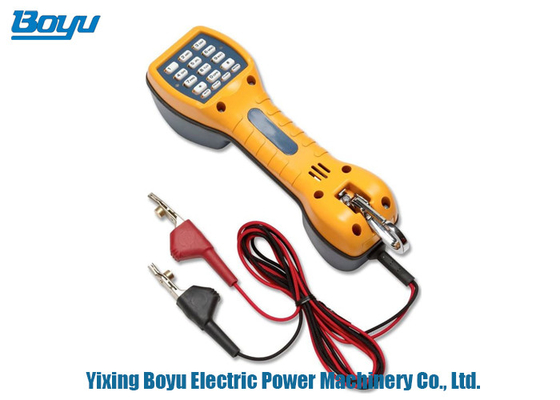

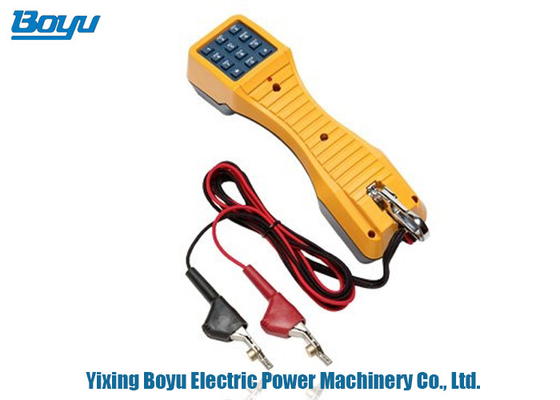

The Fluke Networks TS30 telephone test set, available with various line cord connectors to suit specific applications, detects dial tone and polarity; places and receives calls; monitors lines without disrupting service; and retains one 23-digit redial number for about eight minutes. It provides tone or pulse operation. A pair of LEDs on the front of the unit indicates line polarity when off hook. The test set passes a 20-foot (6 m) drop test and is Ingress Protection certified IP54 for protection against dust and splashed water. The keypad has 12 standard dialing keys including star and pound, and function keys to mute, check polarity, redial a number, and pause for accessing a second dial tone when dialing through a PBX (private branch exchange). A two-position switch allows selection of monitor mode for high-impedance monitoring without disrupting service, and talk mode for dialing and talking. The test set is made of high-impact polycarbonate that provides excellent insulating properties. Its contoured hand grip rests on the shoulder to enable hands-free operation. A spring-loaded belt clip at the base of the unit provides a secure hold on belt loops and D-rings. Additionally includes various environmental operating conditions. Telephone test sets, also called butt sets, are used by telecom technicians to troubleshoot and maintain copper-wire voice-subscriber lines.
| Specifications |
|
High impedance DataSafe operation in Monitor mode
DropSafe reliability passes 20 foot drop test
RainSafe protection in severe weather conditions
Mute switch
Last number redial
Audible ringer for callbacks
High impedance monitor mode
Automatic regulation of speech levels
Tone and pulse operation
Last number redial in tone and pulse modes
Hook flash button
Fully functional with either line polarity
Audible electronic ringer for call backs
High current and over voltage protection
High impact polycarbonate case
Field replaceable spring-loaded belt clip
Hearing aid compatible receiver
Transmitter Mute switch
Talk and Monitor modes
Ergonomic design
Lightweight unit is easily transported
