Product Details:
Payment & Shipping Terms:
|
| Type: | US Type Turnbuckle | Material: | Steel |
|---|---|---|---|
| Diameter: | 3/8" | Take-up: | 6" |
| Thread Count: | 16 | Eye Inside Diameter: | 51/64" |
| High Light: | US Type Turnbuckle Jaw Take Up,Turnbuckle Jaw Take Up,51 / 64" US Type Turnbuckle |
||

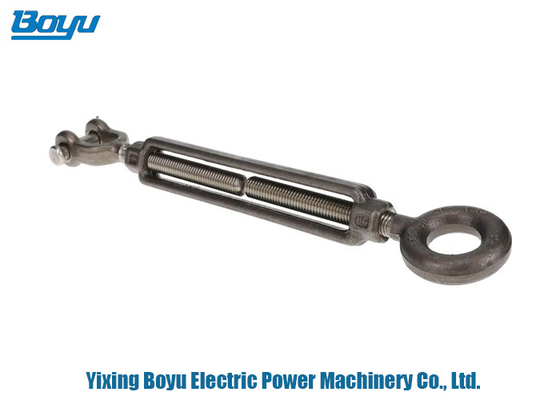

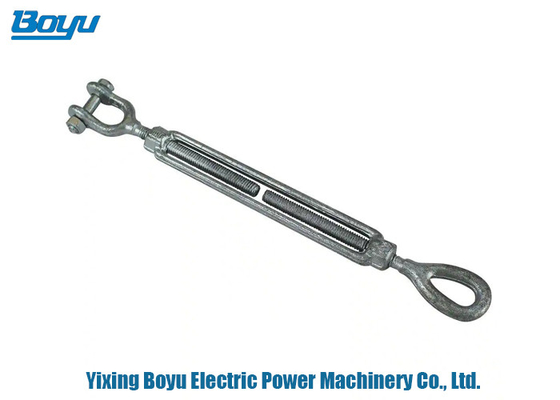

Transmission Line Stringing Tools US Type Turnbuckle Jaw Turnbuckle Take Up
| Model | P-US-T |
| Units | US Type Turnbuckle |
| Category |
Turnbuckles An internally threaded sleeve intended for assembly with a threaded stud, eye, hook or jaw at each end used for applying and regulating tension. |
| Subcategory |
Forged jaw & eye Jaw end fittings consist of a jaw, clevis pin, and cotter pin to attach to connecting components that cannot be opened and eye end fittings are used with connecting components that can be opened and attached to the eye. |
| Material |
Steel A low carbon steel for general use. |
| Finish |
Plain Unplated finish. |
| Domestically produced | Yes |
| Diameter | 3/8" |
| Take-up | 6" |
| Thread count | 16 |
| Eye inside diameter | 51/64" |
| Eye outside diameter | 1-17/32" |
| Jaw inside length | 7/8" |
| Jaw opening width | 1/2" |
| Pin diameter min | 5/16" |
| Overall length | 11-7/8" |
| Rated Capacity | 1,040lbs |
Take up slack with a Crosby HG228 jaw/jaw Turnbuckles are manufactured with the end fittings quenched and tempered. The jaw allows connection to rigging hardware that can not be opened, an eye bolt for instance.
Used to apply tension to wire ropes such as guy lines, median barriers, architectural wire ropes or adjust the length of sling legs in multiple leg lifting applications.
The bodies are heat treated by normalizing, the finish is then hot dip galvanized for long term corrosion resistance and long service life.
Used for for Lifting, Holding And Tensioning the HG228 range meets or exceeds all requirements of ASME B30.26.Recommended for a straight or in-line pull only.
We don't know when or if this item will be back in stock.
Crosby products meet or exceed all requirements of ASME B30.26
Hot Dip galvanized steel
Turnbuckles recommended for straight or in-line pull only
