| Type: | Digital Voltage Meter | Line Voltage Mode: | 0 – 40kV |
|---|---|---|---|
| Operating Frequency: | 50 – 60 Hz | Batteries: | 3 X 1.5V Alkaline Or NiMH “AA” |
| Operating Temperature: | -40F To 122F | Storage Temperature: | -40F To 158F |
| High Light: | Transmission Line Stringing Digital Voltage Meter,60Hz Digital Voltage Meter,Digital 40kV Voltage Meter |
||

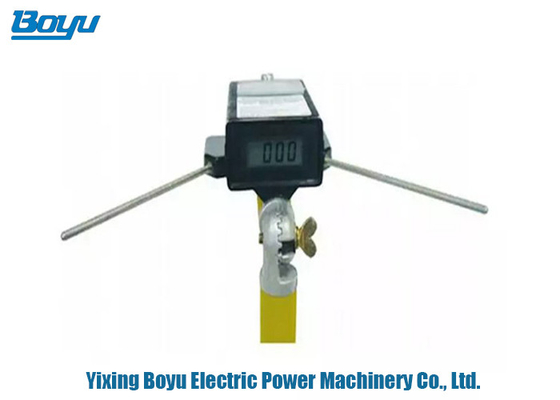

Transmission Line Stringing Tools Digital Voltage Meter Operating Frequency 50 - 60 Hz
SPECIFICATIONS
| Line Voltage Mode |
0 – 40kV AC 0 – 4 kV DC |
| Operating frequency | 50 – 60 Hz AC, DC |
| Batteries | 3 x 1.5V Alkaline or NiMH “AA” |
| Battery Life |
24 hrs (backlight on continuously) 14 days (backlight off continuously) |
|
Operating Temperature |
-40F to 122F |
| Storage Temperature | -40F to 158F |
| Weight |
3.8lbs (without probes) 4.0 lbs (with probes) |
| Accuracy | AC Scale - 2% of the reading ± 1 |
| DC Scale - ± 100 Volts |
Accuracy is affected in the field by the proximity of other conductive objects in the vicinity of this Meter.
Keeping the cord away from other objects will improve accuracy.
Accuracy is given as [% of reading] ± [number of least significant digits]
Performance Characteristics of Digital Phase Nucleator Phase Sequence Measurement: It can measure the phase sequence of transmission and distribution lines and transformers with electricity, including the voltage between phases and ground. There are two types of phase nucleus specifications: 0-20KV and 0-40KV 0-20KV with external resistance, the range can be expanded to 80KV 0-40KV with external resistance, and the range can be expanded to 240KV LCD display numbers, with a font height of 12.5mm and accurate data to 0.1KV in case of insufficient light, You can turn on the back lighting switch to ensure clear data display. Equipped with a 9V battery, if the battery level is low, the display screen will indicate a curled and retractable cable with a length of 0.4m, Fully expandable up to 3.04m6711: 0~40KV phase detector set (including 6702 host, 2 1.8m operating rods, tool bag, and portable case) 6713: 0~20KV phase detector set (including 6706 host, two 1.8m operating rods, tool bag, and portable case) 6719: Phase detector self check device Note: Other length operating rods can be selected.

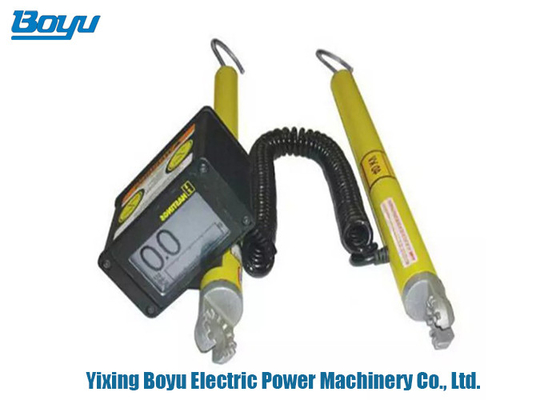

0-40KV Digital Volt Meter: two-stick voltmeter for measuring and phasing overhead distribution voltages up to 40KV and up to 240KV if used with resistors. Digital voltage phasing meter. Instrument for measuring overhead and underground voltages.
FEATURES
Auto self test and battery voltage level check during startup.
Large digital display with backlight on/off function.
Three modes of operation are available: AC, Hi-Pot (Hi-Pot Adapter must be installed to use in Hi-Pot mode, seepage 6), and DC.
Maximum value of voltage range is displayed.
Long battery life from three “AA” batteries.
High quality rugged extruded aluminum enclosure.
