| Type: | Cable Grip Steel Wire Puller | Rated Load: | 100kN |
|---|---|---|---|
| Weight: | 0.8kg | WLL: | 1000KG |
| Applicable Cable Size: | 2.5-16mm/0.1-0.6inch | ||
| High Light: | 100kN Cable Grip Steel Wire Puller,Grip Steel Wire Puller,Transmission Line Stringing Steel Wire Puller |
||

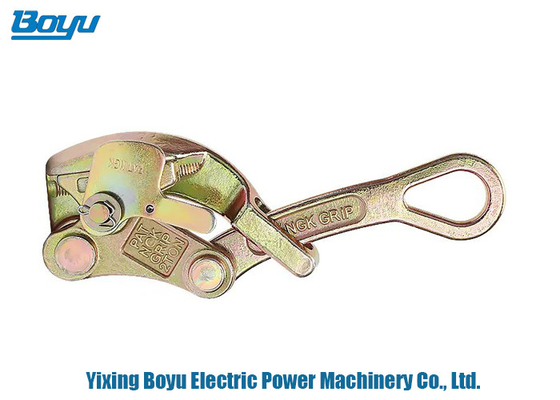

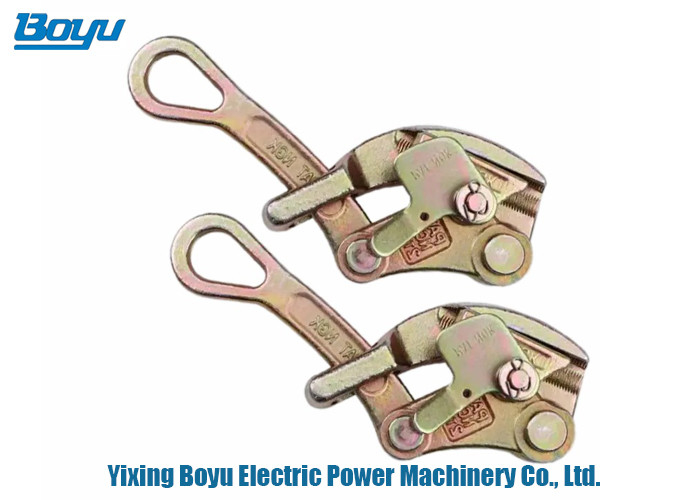

Transmission Line Stringing Tools P-CGP Cable Grip Steel Wire Puller
The cable grips pulling are made of alloy steel, the structure is compact and strong, special heat treatment, durable, stable, and high strength.
With strong resistance and high bite, not easy to slip and deform. It can adjust the overhead power lines, which can solve the problem of sagging and tightening them.
The jaw with an anti-chip safety device, ensures the safety and the jumper. With delicate and smooth tongs, minimal damage to the lead.
For all kinds of steel cables apply to electric power, the operation of industry and agriculture, and the tightening of the rope line.
Applicable wire diameter 4-22mm, Max Load 2 Ton. If you have any questions about our products, please feel free to contact us.
Made of alloy steel, strong and durable
High occlusion, strong clamping performance, can grip wire tightly without damaging it.
The swing latch is designed to help hold cable in the jaw.
Suitable for gripping steel strand, aluminium cable steel reinforced, steel wire rope, etc.
0.5 Ton Applicable cable size: 1-10mm/0.04-0.4inch, maximum safe load: 0.5 Ton / 1102 pounds; 1 Ton Applicable cable size: 2.5-16mm/0.1-0.6inch, maximum safe load: 1 Ton / 2204 pounds;
2 Ton Applicable cable size: 4-22mm/0.15-0.8inch, maximum safe load: 2 Ton / 4409 pounds;
3 Ton Applicable cable size: 16-32mm/0.63-1.26inch, maximum safe load: 3 Ton / 6613 pounds.
SPECIFICATIONS:
Applicable wire diameter: 4-22mm/0.2-0.9inch
Max load: 2Ton/4409 Lbs
Wight steel cable clamp: 1.6 kg
Package: Paper Box
Use of a wire grip cable puller allows for any slack to be removed quickly and easily and creates a more structurally sound build than manually tightening.
The wire rope grip is made of alloy steel.
The structure is compact, which is light, and portable.
Resistance is strong, the bite is high, not easy to slip and deform.
With delicate and smooth tongs, minimal damage to the lead.
The wire puller is machined and heat treated for excellent durability.
The clamp mouth is equipped with an anti-chip safety device.
Our rope puller applies to electric power, the operation of the industry and agriculture, and the tightening of the wire rope line.
Cable Grip Puller is a tool that allows a user to latch on to a wire or cable to assist in creating tension on a wire rope.
| WLL | 1000KG | 2000KG |
| Rated load | 10KN | 20KN |
| Use range | transmission and distribution 2.6-16mm strand, bare copper wire. | 4-22mm standard transmission and distribution aluminum wire, steel core wire, insulated wire. |
| Weight | 0.8kg | 1.6kg |
| Package | Paper Box | Paper Box |
