720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools

720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools
720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools

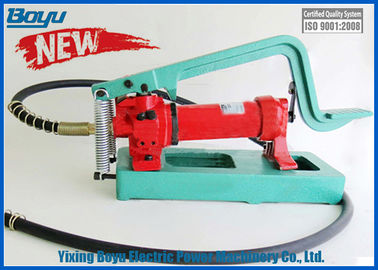

Large Image :  720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYCFP
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: container
Delivery Time: 25-30days
Detailed Product Description
OEM: Available After Sales Service: Available
Reservoir Capacity: 720cc Oil Delivery(cc/stroke): Low:12.26;high:2.26
Weight: 11kg
High Light:

overhead line tools

,

transmission line construction equipment

720cc High Pressure Hydraulic Pedal Pump 11kg Transmission Line Stringing Tools



Quick details:


1. Transmission Line Stringing Equipment Accessories & Tools
2.
Super High Pressure Hydraulic Pedal Pump
3. Reservoir Capacity:720cc
4. Oil delivery(cc/stroke): low:12.26;high:2.26
5. Reservoir Capacity:720cc
6. Boyu Brand


Description:

  1. Pump is designed in two stages of high and low speed for quick oil output. Even if lack of electric power, operation could be carried conveniently. It is the same as the electric pump in any working pressure and function.
  2. Pedal operation. The operator could work while hands griping tool or object.
  3. Pressure could be stopped in middle. Inner designed high pressure safely unit project hydraulic vale.
  4. Wide hydraulic pump base for fixing frame could improve stability of operation at work.
  5. Oil pipe fitted with quick coupling could be ordered in any length. It could be fitted with pressure meter (to be ordered).
  6. Oil pipe coupling fitted with pt3/8” thread.


Specification:



Model

Max pressure

Pressure/Oil Delivery

  ( kgf/cm^2 /cc)

Capacity

Dimension

Mass without oil

(bar)

1st  stage

2nd stage

(cc)

mm

(Kg)

TYCFP800

700

0-20/12.26

20-700/2.26

720

520*140*200

11





Maufacturer Introduction

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are at the east of China, near Shanghai seaport, Nanjin airport, Hangzhou airport, about 2~3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
  • Line Stringing Equipment and accessories and tools.
  • Nonmetallic galvanized the production equipment (Achieved high-tech products)
  • Numerical control machine
  • Low voltage no power-arc furnace compensation system.

We produce 40~60sets of stringing equipment each month and all kinds of accessories.
