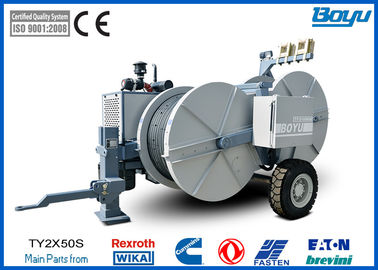

Large Image :  Double Conductors Hydraulic Tension Stringing Force 11Tons Conductor Max Diameter 40mm Two Hydraulic System Separated

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2X50

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms: FOB(Shanghai) or CIF (assigned port).
Contact Now
Detailed Product Description
After Sales Service: Available OEM: Avaiable
Groove Number: 2x5 Hydraulic Meter: German Wika
Engine: Cummins Hydraulic Pump: German Rexroth / Dnish Danfoss
Hydraulic Reducer: German Rexroth

Double Conductors Hydraulic Tension Stringing Force 11Tons Conductor Max Diameter 40mm Two Hydraulic System Separated


Quick details


1. Double Conductor Tension Stringing Equipment
2. Hydraulic Tensioner for two bundle conductor

3. Main pump and motor and speed reducer: German Rexroth
4. Hydraulic meter: German Wika
5. Max tension: 2x55kN/110kN 11Tons

6. Groove number: 2x5
7. Diesel: Cummins 77kw 103hp
8. Boyu Brand

Main configuration

  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • Operating handle: German Rexroth
  • Speed reducer: German Rexroth
  • Hydraulic meter: German WIKA

Characteristics


Bull-wheel diameter: 1300/1500mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 6000kg
Overall dimension (length*width*height): 4700×2300×2700mm


Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains


Performance

  1. Max intermittent tension: 2x55kN
  2. Max continuous tension: 2x50kN
  3. Speed at max tension: 2.5km/h
  4. Max speed: 5km/h
  5. Tension at max speed: 2x25kN
  6. Max reverse pulling force: 2*45kN/1*90kN
  7. Max reverse pulling speed: 5km/h

Configuration


2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Grounding connection point



Engine


Diesel   77kw(103hp)
Cooling system   water
Electrical system  24V


Hydraulic Transmission


The machine can realize step less speed.
The machine is provided with tension presetting system.


Additional Devices

  1. Lighting system for the trailer
  2. Air brake system for the trailer(extra charge)
  3. 2 hydraulic conductor clamps for drum change
    operations(extra charge)
  4. Digital speed and meter counter

Double Conductors Hydraulic Tension Stringing Force 11Tons Conductor Max Diameter 40mm Two Hydraulic System Separated

Manufacturer Introduction


Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German WIKA
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.



Double Conductors Hydraulic Tension Stringing Force 11Tons Conductor Max Diameter 40mm Two Hydraulic System Separated



Work site


Double Conductors Hydraulic Tension Stringing Force 11Tons Conductor Max Diameter 40mm Two Hydraulic System Separated

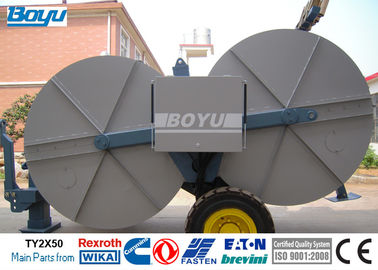

TY2x50 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1300/1500mm

Max conductor diameter: 40mm

Groove number: 2x5

Total weight: 6000kg

Overall dimension (length*width*height): 4700×2300×2700mm

Performance

Max intermittent pull: 2x55kN

Max continuous pull: 2x50kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x25kN

Max reverse pulling force: 2*45kN

Max reverse pulling speed: 5km/h

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Engine

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter counters

2 digital speed meters

Control instruments for hydraulic system and diesel engine

Hydraulic front stabilizer

Grounding connection point

Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor.

Additional Devices

Lighting system for the trailer

Air brake system for the trailer(extra charge)

2 hydraulic conductor clamps for drum change operations (extra charge)

Digital speed and meter counter
