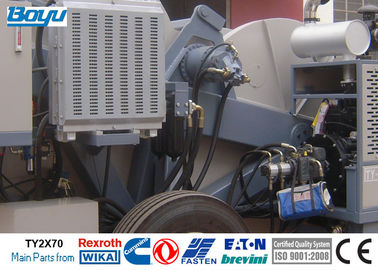

14Tons Cummins Engine Tension Stringing Equipment With OPGW / ADSS Conductor Main Motor German Rexroth

14Tons Cummins Engine Tension Stringing Equipment With OPGW / ADSS Conductor

Quick details

• 1. Hydraulic Tension Stringing Equipment
• 2. Groove number: 2x6
• 3. Bull-wheel diameter: 1700mm
• 4. Boyu Brand
• 5. Hydraulic Tensioner for two bundle conductor
• 6. Max tension: 2x70kN/140kN 14Tons
• 7. Diesel: Cummins 77kw(103hp)
• 8. Main pump and motor and speed reducer: German (Rexroth)

Description


The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1700mm
Max conductor diameter: 40mm
Groove number: 2x6
Total weight: 7500kg
Overall dimension (length*width*height): 4700×2300×2700mm

Performance

Max intermittent tension: 2x70kN
Max continuous tension: 2x65kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Tension at max speed: 2x25kN
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h

Main configuration


Engine: Cummins
Hydraulic pump: German Rexroth
Main motor: German Rexroth

Operating handle: German Rexroth
Speed reducer: German Rexroth
Hydraulic meter: German

Additional Devices

Lighting system for the trailer
Hydraulic brake system for the trailer
2 hydraulic conductor clamps for drum change operations
Electronic pull and speed recorder

Engine
Diesel   77kw(103hp)
Cooling system   water
Electrical system  24V

Configuration

2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Grounding connection point

Additional Devices

·Lighting system for the trailer
·2 hydraulic rope/conductor clamp
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter
(extra charge)
·Air brake system for the trailer

Hydraulic Transmission


The machine can realize step less speed.
The machine is provided with tension presetting system

Sketch

More Pictures

Manufacturer Introduction

Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Hydraulic Tension Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
