Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm

China Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm supplier
Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm supplier Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm supplier Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm supplier

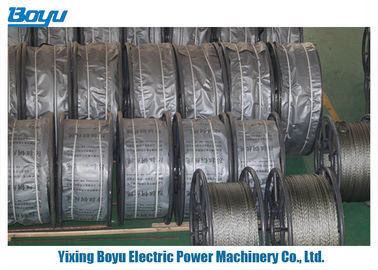

Large Image :  Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: YL22-18x29Fi

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Steel Reel
Delivery Time: 15~25 days
Payment Terms: TT/LC
Supply Ability: 300000m/month.
Price terms.: FOB(Shanghai) or CIF (assigned port)
Contact Now
Detailed Product Description
Product Name: Anti-twisting Braided Steel Wire Rope After Sales Service: Avaiable
OEM: Available Breakage Load: 389kn
Structure: 6 Squares 18 Strands Reel Diameter: 1400mm

22mm Anti-twisting 18 Strands Breakage load 372kN Braided Steel Wire Rope Overhead Transmission Line Stringing



Quick details:

  • Transmission Line Stringing Accessories
  • Anti-twisting Braided Steel Wire Rope
  • Normal Diameter: 22mm
  • Breakage load: 389kN
  • Size available: 9~30mm
  • 6 Squares 18 Strands
  • Length: 800m
  • Reel diameter: 1400mm
  • Boyu Brand

Description
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.

Item no.

Normal Diameter (mm)

Structure

Breakage tension(kN)

Standard Length (m)

Diameter of spool

(mm)

Total weight

(kgs)

YL9-12x19W

9

12 Strands

55

1000

850

294

YL10-12x19W

10

12 Strands

55

1000

850



YL11-12x19W

11

12 Strands

80

1000

1000

454

YL13-12x19W

13

12 Strands

120

1000

1100

642

YL16-12x19W

16

12 Strands

158

1000

1250

886

YL18-12x19W

18

12 Strands

210

1000

1400

1154

YL20-12x29Fi

20

12 Strands

250

1000

1400

1394

YL22-12X29Fi

22

12 Strands

320

1000

1400

1258

YL24-12x29Fi

24

12 Strands

360

800

1440

1474

YL28-12x29Fi

28

12 Strands

480

500

1600



YL30-12x29Fi

30

12 Strands

540

500

1600



YL20-18x19W

20

18 Strands

300

1000

1440

1368

YL22-18X29Fi

22

18 Strands

389

800

1440



YL24-18x29Fi

24

18 Strands

440

800

1440



YL28-18x29Fi

28

18 Strands

580

500

1600

1655

YL30-18x29Fi

30

18 Strands

658

500

1600

1900









Structure: 22mm 389kN Anti twisted Braided Steel Wire Rope Line Stringing 6 Squares 18 Strands

Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm















































Maufacturer Introduction
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

  1. Line Stringing Equipment and accessories and tools.
  2. Nonmetallic galvanized the production equipment (Achieved high-tech products)
  3. Numerical control machine
  4. Low voltage no power-arc furnace compensation system

Anti twist 18 Strands Breakage load 372kN Braided Steel Wire Rope for Overhead Transmission Line 22mm



22mm Anti-twisting 18 Strands Breakage load 389kN Braided Steel Wire Rope Overhead Transmission Line Stringing
