Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Bus-bar Machine | Dimension Of Work Table: | Approx.690X690X730 |
|---|---|---|---|
| Voltage Single Phase: | 220V 50HZ | Rating Oil Pressure: | 700kg/cm^2 |
| Bending Force: | 170KN/200KN | Cutting Force: | 200KN / 300KN |
| High Light: | copper bus bar machine hydraulic,220v 50hz copper bus bar machine,transmission line copper bus bar machine |
||

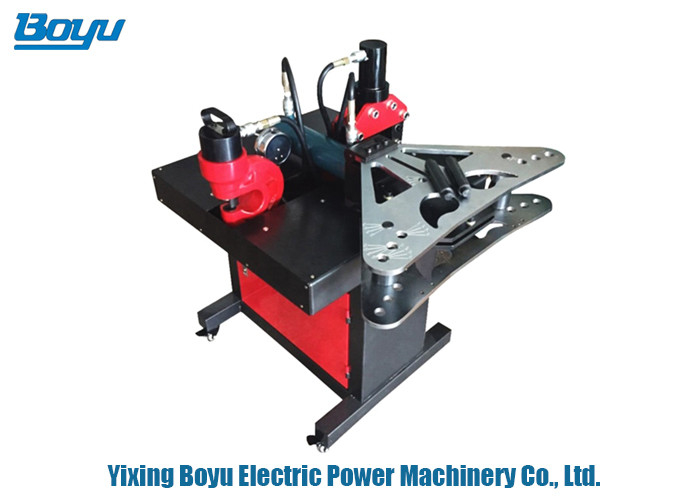

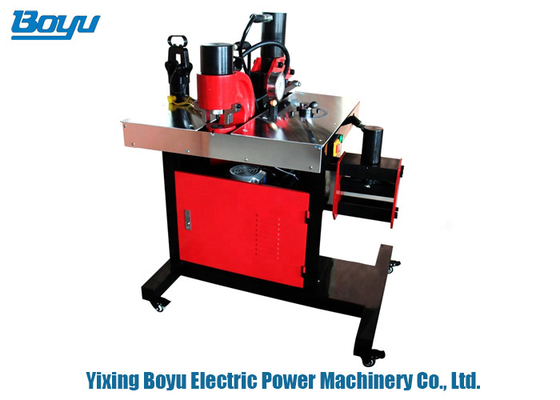

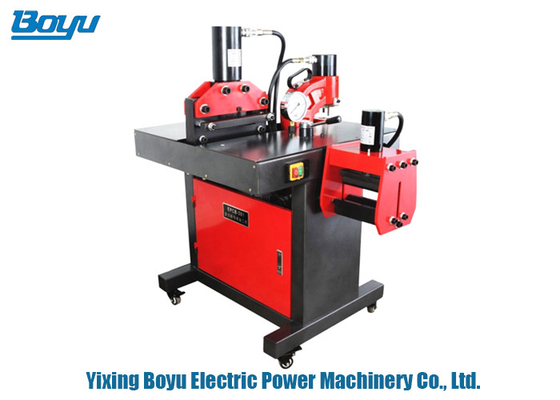

Transmission Line Stringing Tools Hydraulic Bus-bar Machine Copper Bus Bar Machine
| Hydraulic Bus-bar Machine | ||
| Model | EPCB-301 | EPCB-401 |
| Function | With three functions,cutting,punching and bending | With four functions,cutting,punching and bending (horizontal and erective) |
| Dimension of work table | Approx.690X690X730 | Approx.690X690X730 |
| Voltage single phase | 220V50HZ | 220V50HZ |
| Rating oil pressure | 700kg/cm^2 | 700kg/cm^2 |
| Bending force | 170KN/200KN | 270KN |
| Bending range | 150x10mm max / 200x12mm max | 125x12.5mm max |
| Cutting force | 200KN / 300KN | 200KN / 300KN |
| Cutting range | 150x10mm max / 200x12mm max | 150x10mm max / 200x12mm max |
| Punching force | 300KN / 350KN | 300KN / 350KN |
| Distance from hole to sheet side | 95x110mm max | 95x110mm |
| Punch range |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
3/8”(Φ10.5mm),1/2”(Φ13.8mm) 5/8(Φ17mm),3/4”(Φ20.5mm) |
