Hydraulic Puller Transmission Line Stringing Equipment Cummins Engine

small.img.alt small.img.alt

Large Image :  Hydraulic Puller Transmission Line Stringing Equipment Cummins Engine

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO
Model Number: TY90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Transmission Line Stringing Equipment Max Continuous Pull: 90kN
Max Pull: 100kN Pull At Max Speed: 40kN
Bull-wheel Diameter: 540mm Max Rope Diameter: 21mm
High Light:

cummins engine hydraulic pulling equipment


cummins engine hydraulic cable puller


cummins engine hydraulic wire puller

Hydraulic Puller Transmission Line Stringing Equipment Cummins Engine

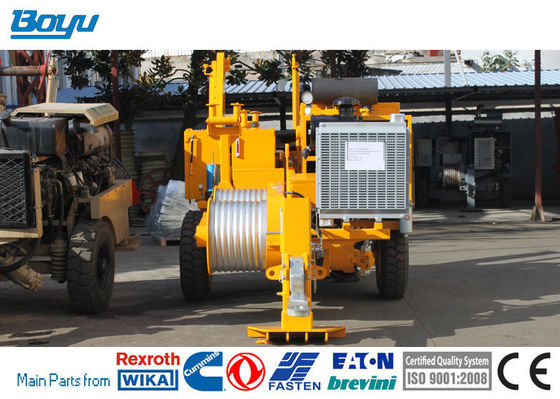

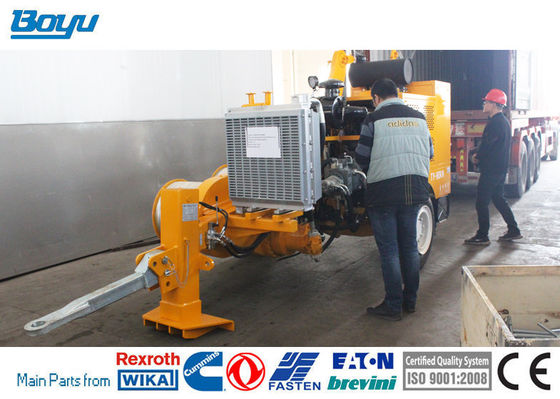

TY90 Hydraulic Puller

This hydraulic puller allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.



Bull-wheel diameter: 540mm

Total weight: 4350kg

Groove number: 8

Max diameter of rope reel: 1400mm

Max rope diameter: 21mm

Overall dimension (length*width*height): 4500×2100×2450mm



Max pull: 100kN

Max continuous pull: 90kN

Max speed: 5km/h

Pull at max speed: 40kN

Speed at max pull: 2.5km/h



Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged

Cooling system liquid

Electrical system 24V


Main configuration

Engine: Cummins

Tail bracket hoisting motor: American Eton

Hydraulic meter: German WIKA

Speed reducer: German Rexroth

Main motor: German Rexroth

Hydraulic pump: German Rexroth

Operating handle: German Rexroth


Additional Devices

Lighting system for the trailer

Digital speed and meter counter (extra charge)

Hydraulic rope clamp for reel change

Trailer for towing at max speed of 30 km/h

Extra shaft

Swivel guide rope roller


Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.

This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Hydraulic dynamometer with set-point and automatic control of maximum pull

Grounding connection point

Hydraulic front stabilizer

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine


Additional Devices

Cable and radio remote control fully replacing all controls at machine panel.


Hydraulic system for drum stand control with flat face quick action couplings


The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.


Remote diagnosis via GSM network with GPS modem, Synchronization system


Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit


Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

  Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Manufacturer's workshop maintenance manual, in English


Manufacturer's recommended tools.


Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
