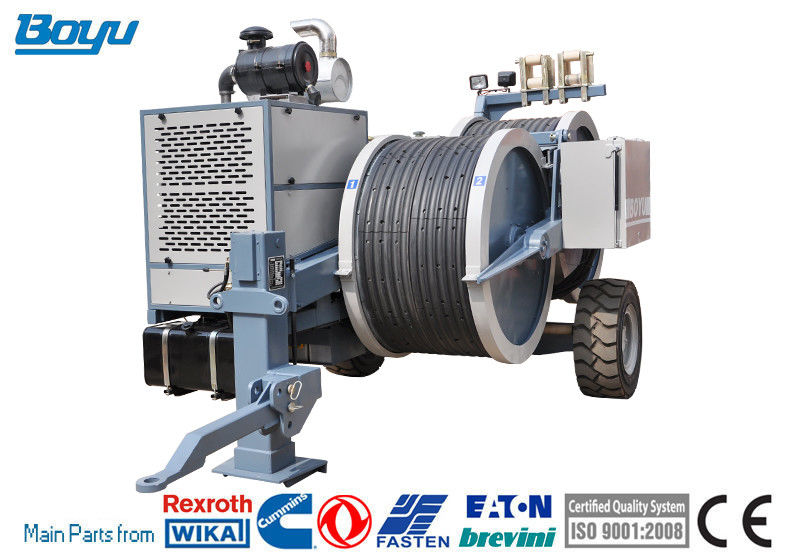

2x5 Overhead Line Hydraulic Tensioner With Water Cooling Engine

2x5 Overhead Line Hydraulic Tensioner With Water Cooling Engine
2x5 Overhead Line Hydraulic Tensioner With Water Cooling Engine
video play

Large Image :  2x5 Overhead Line Hydraulic Tensioner With Water Cooling Engine

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2x40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Max Intermittent Pull: 2x45kN Max Continuous Pull: 2x40kN
Bull-wheel Diameter: 1300/1500mm Max Conductor Diameter: 40mm
Groove Number: 2x5 Total Weight: 5800kg
Overall Dimension (length*width*height): 4300*2250*2700mm Engine: Cummins
Hydraulic Pump: German Rexroth/Dnish Danfoss Type: Stringing Equipment TY2x40 Hydraulic Tensioner
High Light:

Overhead Line Hydraulic Tensioner

,

2x5 Hydraulic Tensioner

,

Water Cooling Engine Hydraulic Tensioner

Overhead Line Stringing Equipment TY2x40 Hydraulic Tensioner With Water Cooling System Engine



TY2x40 Hydraulic Tensioner

  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

  • Bull-wheel diameter: 1300/1500mm
  • Max conductor diameter: 40mm
  • Groove number: 2x5
  • Total weight: 5800kg
  • Overall dimension (length*width*height): 4300*2250*2700mm

Performance

  • Max intermittent pull: 2x45kN
  • Max continuous pull: 2x40kN
  • Speed at max pull: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 2x20kN
  • Max reverse pulling force: 2x35kN
  • Max reverse pulling speed: 5km/h

Engine

  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V

Main configuration

  • Engine: Cummins
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Main motor:German Rexroth/French Leduc
  • Speed reducer: German Rexroth
  • Hydraulic meter: German
  • Operating handle: German Rexroth

Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Additional Devices

  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Digital speed and meter counter

Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Hydraulic front stabilizer
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
