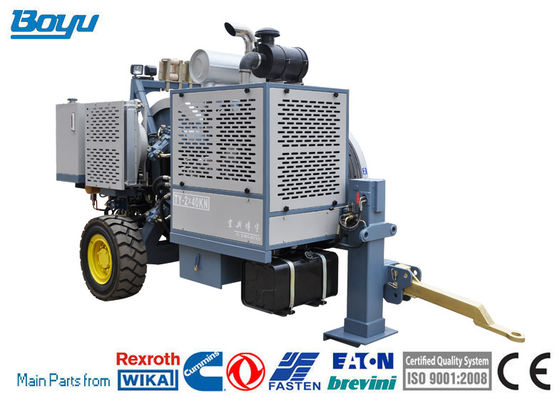

Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN

Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN
Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN

Large Image :  Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN

Product Details:

Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x40

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Max Intermittent Pull: 2x45kN Max Continuous Pull: 2x40kN
Bull-wheel Diameter: 1300/1500mm Max Conductor Diameter: 40mm
Total Weight: 5800kg Overall Dimension (length*width*height): 4300*2250*2700mm
Diesel: 77kw(103hp) Engine: Cummins
High Light:

Overhead Line Hydraulic Tension Machine

,

2x40kN Hydraulic Tension Machine

,

Hydraulic Tension Overhead Line Machine

TY2x40 Stringing Equipment Hydraulic Tension Machine For Overhead Line Max Continuous Pull 2x40kN



Max intermittent pull

2x45kN

Max continuous pull

2x40kN

Speed at max pull

2.5km/h

Max speed

5km/h

Pull at max speed

2x20kN

Max reverse pulling force

2x35kN

Max reverse pulling speed

5km/h

Bull-wheel diameter

1300/1500mm

Max conductor diameter

40mm

Groove number

2x5

Total weight:

5800kg

Overall dimension (length*width*height)

4300*2250*2700mm

Diesel

77kw(103hp)

Cooling system

water

Electrical system

24V

Engine

Cummins

Hydraulic pump

German Rexroth/Dnish Danfoss

Main motor

German Rexroth/French Leduc

Speed reducer

German Rexroth

Hydraulic meter

German WIKA

Operating handle

German Rexroth



Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN 0



Company Profile
Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN 1
Overhead Line Hydraulic Tension Machine Max Continuous Pull 2x40kN 2
After-sale Service Warranty
The after-sale service is an important part of our marketing and sales work. The quality of service provided will not only influence the company credit, but also closely relate to the safely running of the equipment. In order to maintain the good reputation of BOYU, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution.

We will conscientiously implement the after-sale service work in full-scale, and make commitment to our clients as follows:

Customer support

Customer is our first priority



Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy Boyu machines, we provide free technical support by means of phone or mail. Also our customers can download operation and maintenance videos from our website.

  1. We will provide some easily damaged parts of the equipment to ensure the normal operation.
  2. If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.
  3. If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.
  4. If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer’s notice in 48 hrs.
  5. BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
