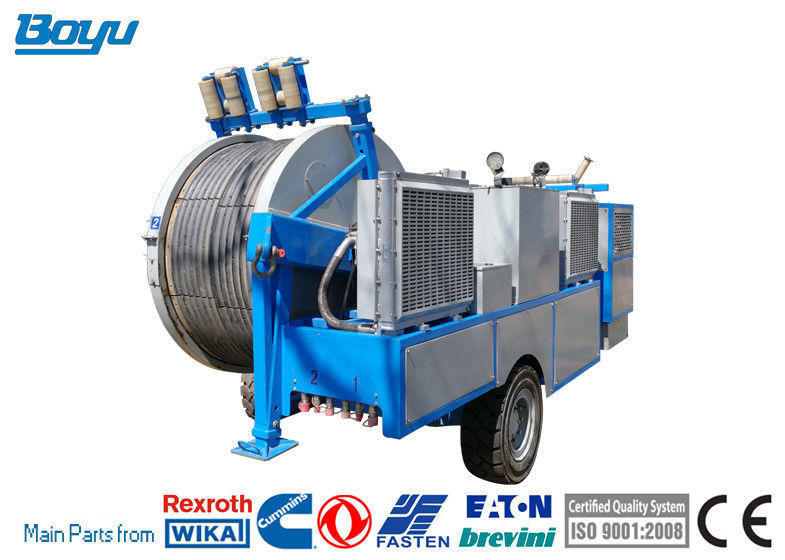

Hydraulic Puller Tensioner Overhead Line Stringing Tools Max Pull 2x45kn / 1x90kn

Hydraulic Puller Tensioner Overhead Line Stringing Tools Max Pull 2x45kn / 1x90kn
Hydraulic Puller Tensioner Overhead Line Stringing Tools Max Pull 2x45kn / 1x90kn
video play

Large Image :  Hydraulic Puller Tensioner Overhead Line Stringing Tools Max Pull 2x45kn / 1x90kn

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2x45TP-21
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Max Pull: 2x45kN/1x90kN Max Tension: 2x45kN/1x90kN
Diesel: 118kw(158hp) Engine: Cummins
Bull-wheel Diameter: 1500mm Overall Dimension: 4700×2300×2700mm
Hydraulic Pump: German Rexroth Main Motor: German Rexroth
Total Weight: 6200kg Type: Hydraulic Puller Tensioner
High Light:

cable stringing equipment

,

power line stringing equipment

Overhead Line Stringing Equipment Hydraulic Puller Tensioner Max Pull 2x45kN/1x90kN

  • The machine is suitable to string one or two ropes or bundled conductors.
  • The bull-wheel grooves are made of high resistance interchangeable nylon sectors.
  • The machine is completely electronically controlled.

Puller

  • Max pull: 2x45kN/1x90kN
  • Speed at max pull: 2.4km/h
  • Max speed: 5km/h
  • Pull at max speed: 2x22kN/1x44kN
  • Tensioner
  • Max tension: 2x45kN/1x90kN
  • Max speed: 5km/h

Engine

  • Diesel: 118kw(158hp)
  • Cooling system: water
  • Electrical system: 24V

Characteristics

  • Bull-wheel diameter: 1500mm
  • Max rope diameter: 18mm
  • Max conductor diameter: 40mm
  • Total weight: 6200kg
  • Overall dimension: 4700×2300×2700mm

Main configuration

  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • Speed reducer: German Rexroth
  • Hydraulic meter: German
  • Operating handle: German Rexroth
Additional Devices
  • Lighting system for the trailer
  • Hydraulic brake system for the trailer
  • 2 hydraulic conductor clamps for drum change operations (extra charge)
  • Electronic pull and speed recorder



Hydraulic Puller Tensioner Overhead Line Stringing Tools Max Pull 2x45kn / 1x90kn 0



Other Models

Model TY25TP TY35TP TY45TP TY90TP TY140TP TY2X70TP
Max pull kN 25 35 45 90 140

2x70/

1x140

Speed at max pull km/h 1.3 2.6 2.7 2.4 1.7 2
Max speed km/h 4 4.5 5 5 4 4.5
Pull at max speed kN 8 20 25 44 60

2x30/

1x60

Max tension kN 25 35 45 90 140

2x70/

1x140

Max speed km/h 5 4.5 5 5 4 4.5
Diesel kw(hp) 48(64) 48(64) 63(85) 118(158) 129(173) 129(173)
Cooling system   Water
Electrical system V 24
Bull-wheel diameter mm 1500 1200 1500 1500 1500 1700
Max rope diameter mm 10 13 16 18 24 24
Max conductor diameter mm 36 34 34 40 40 46
Total weight kg 2300 2200 3000 4600 6800 8000
Overall dimension mm 3520*2000*2200 4000*2000*2300 4700*2200*2300 4700*2300*2700
