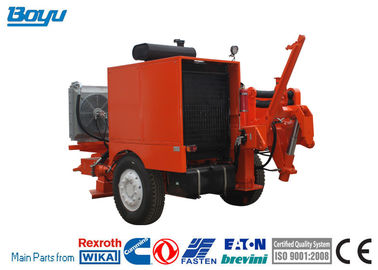

Hydraulic Transmission Line Stringing Equipment Cable Puller Groove Number 10

Hydraulic Transmission Line Stringing Equipment Cable Puller Groove Number 10
Hydraulic Transmission Line Stringing Equipment Cable Puller Groove Number 10
video play

Large Image :  Hydraulic Transmission Line Stringing Equipment Cable Puller Groove Number 10

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180-21
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Type: Hydraulic Puller Max Pull: 190kN
Max Speed: 6km/h Diesel: 325hp
Engine: Cummins Cooling System: Liquid
Max Diameter Of Rope Reel: 1400mm Overall Dimension: 5000x2300x2500mm
High Light:

power line construction equipment

,

cable stringing equipment

TY180 Hydraulic Cable Puller Stringing Equipment Groove number: 10



The machine can tension four bundles of wires of 630mm2 and below in mountainous and hilly areas, and tension four bundles of wires of 720mm2 and below on flat land. In addition, it can also be used for traction cables of OPGW or ADSS cables, as well as 500kV traction cables in various terrains, suitable for altitudes above 1500 meters.



Model   TY40 TY60 TY90 TY120 TY150 TY180 TY220 TY280 TY380
Max intermittent pull KN 40 60 100 120 150 190 220 280 380
Max continuous pull KN 30 50 90 100 120 180 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 6 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diesel kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173) 325 239(320) 298(400) 440(590)
Cooling system   Water Water Liquid Water Water Liquid Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 600 600 750 760 960 960
Groove number   7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 28 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4350 4800 5500 6700 6800 12800 13600



Main configuration

Engine: Cummins

Hydraulic meter: German
Operating handle: German Rexroth
hydraulic pump: German Rexroth
Main motor: German Rexroth
speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton





Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic front stabilizer, Grounding connection point



Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Hydraulic system for drum stand control with flat face quick action couplings

Manufacturer's workshop maintenance manual, in English

Remote diagnosis via GSM network with GPS modem, Synchronization system

Manufacturer's recommended tools.

Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
