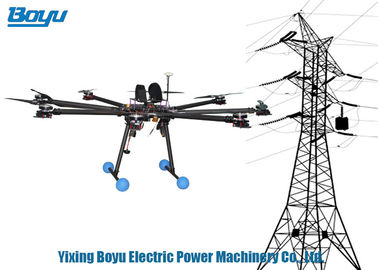

UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical

UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical
UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical

Large Image :  UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical

Product Details:
Place of Origin: China
Brand Name: Boyu
Model Number: HYPLD-8
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets/month.
Detailed Product Description
Type: Transmission LIne 8 Spirals Wing Drone The Size Of Drone: 680/850/1100/1300mm
Body Material: Carbon Fiber The Weight Of Drone: 2-5 Kg
Temperature Range: -20 ~ 50 Degrees Celsius Wiring Devices: It Can Achieve Remote Control Wire
Remote Controller: 2.4G AT9 Rotor Of Drone: 15-28 Inch Full Carbon Fiber
Motor Speed: 1200r/min Battery Life Without Cargo: About 25 Minutes
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment

Transmission Line Stringing Tools UAV Drone With Camera For Power Line​



Technical Parameter Description Remark
The size of drone 680/850/1100/1300mm Any size can be made
The folding size of the drone All aluminum folding arm, aluminum made Umbrella folding
The weight of drone 2-5 kg
Maximum takeoff weight 9-12 kg
The payload of drone 4-6 kg
Rotor of drone 15-28 inch full carbon fiber Match the best size according to the model
Wiring devices It can achieve remote control wire
Remote controller 2.4G AT9 6 / 10 can be collocated according to configuration
Battery of drone High performance lithium polymer lithium battery
22.2V/16000mA 12000/16000/24000
Charger High-power lithium balance charging equipment
UAV self-stabilizing system availble
Motor speed 1200r/min
Battery life without cargo About 25 minutes
Battery life with cargo Within 20 minutes
Pilot rope 3.5/2.0 Dupont or Dyneema rope
Flight altitude 0-1500m Adjustable
Maximum take-off altitude 4500m
The approach of
taking off and landing
Vertical
Wind resistance ≤8.0m/s Wind resistance can reach six levels
Flight speed 14m/s It can be arbitrarily adjustable according to required need
Hover It can hovering in the air at any position
and return automatically when out of control

Flight attitude It can fly in any direction,
reverse flight and slam the brakes on

Hover precision horizontal±1.5m ,vertical±0.5m
Time for taking off or landing ≤1min
Body Material Carbon fiber
Temperature range -20 ~ 50 degrees celsius
Battery power performance It can charge-discharge 300-500 times
Frame life ≥ 5 years




UAV Drone Transmission Line Stringing Tools With Camera For Power Line , Vertical 0
