Rotor Of Drone 15-28 Inch Full Carbon Fiber UAV Drone For Power Line Using

Rotor Of Drone 15-28 Inch Full Carbon Fiber UAV Drone For Power Line Using
Rotor Of Drone 15-28 Inch Full Carbon Fiber UAV Drone For Power Line Using Rotor Of Drone 15-28 Inch Full Carbon Fiber UAV Drone For Power Line Using Rotor Of Drone 15-28 Inch Full Carbon Fiber UAV Drone For Power Line Using

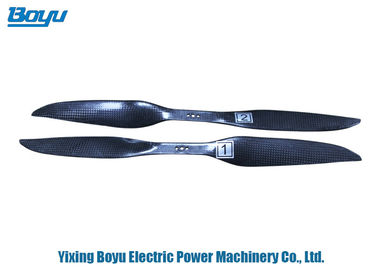

Large Image :  Rotor Of Drone 15-28 Inch Full Carbon Fiber UAV Drone For Power Line Using

Product Details:

Place of Origin: China
Brand Name: Boyu
Model Number: HYPLD-8

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets/month.
Detailed Product Description
Body Material: Full Carbon Fiber Flight Navigation Control Accuracy: Vertical 0.5m, Parallel 1m
Battery Type: Lithium Battery 22V 16000mA Display Battery: 11.1V 2200mA
Take-off And Landing Mode: Vertical Take Off And Landing Effective Load Weight: 5kg
Image Transmitter: 5.8 Working Temperature: -40°C-60°C
Remote Control: TIANDIFEI AT9 Type: Transmission Line Drone
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment

Transmission Line Stringing Tools Rotor Of Drone: 15-28 Inch Full Carbon Fiber UAV Drone For Power Line



The power line drone mainly consists of a drone system and a guide line display system. Generally, in order to make the guide line accurately throw, the drone will be equipped with a camera and a video return system



Type 8 rotors
Body material Full carbon fiber
Flight control+GPS DJ-V2
Image transmitter 5.8
Remote control TIANDIFEI AT9
Display battery 11.1V 2200mA
Take-off and landing mode Vertical take off and landing
Remote control, remote sensing range ≤1.5km
Standard flight weight 8kg
Effective load weight 5kg
Battery type Lithium battery 22V 16000mA
Load flight time About 15-20 minutes
Max flight speed 14m/s
Relative flying height 0-2000m, as per country's limited flying height
Flying speed 0-15m/s (0-54km/h)
Flight navigation control accuracy Vertical 0.5m, parallel 1m
Working temperature -40°C-60°C



The use of unattended erecting lines can not only reduce the occurrence of personal accidents, but also effectively reduce the occurrence of personal accidents. Drones shorten the time to prepare and build traditional wires, thus completely solving the terrain problem that puzzles the power line.
