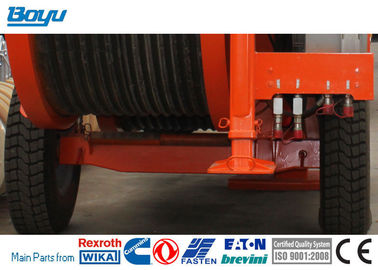

Stringing Equipment Hydraulic Cable Tensioner 2x80kN / 1x160kN Diesel 97kw

Stringing Equipment Hydraulic Cable Tensioner 2x80kN / 1x160kN Diesel 97kw
Stringing Equipment Hydraulic Cable Tensioner 2x80kN / 1x160kN Diesel 97kw
video play

Large Image :  Stringing Equipment Hydraulic Cable Tensioner 2x80kN / 1x160kN Diesel 97kw

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2x80-23
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Rated Tension: 2x80kN / 1x160kN Engine: Cummins
Diesel: 97kw(130hp) Max Feeding Speed: 5km/h
Overall Dimension (length*width*height): 5520×2280×2850mm Groove Number: 2x6
Hydraulic Pump: German Rexroth/Dnish Danfoss Cooling System: Water
High Light:

hydraulic cable puller

,

Power Line Stringing Equipment

Stringing Equipment 2x80kN/1x160kN Hydraulic Cable Tensioner Diesel 97kw



Model

Max

intermittent tension

 Max continuous tension Speed at max tension Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
kN kN km/h km/h kN kN km/h kw(hp)   V
TY2X35

2x40/

1x80

2x35/

1x70

 2.5 5

2x20/

1x40

2x30/

1x60

 5 77(103) Water 24
TY2X40

2x45/

1x90

2x40/

1x80

 2.5 5

2x20/

1x40

2x35/

1x70

 5 77(103) Water 24
TY2X50

2x55/

1x110

2x50/

1x100

 2.5 5

2x25/

1x50

2x45/

1x90

 5 77(103) Water 24
TY2X70

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2X70IV

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2X80

2x100/

1x200

2x80/

1x160

 2.5 5

2x40/

1x80

2x40/

1x80

 3 97(130) Water 24
TY2X90

2x100/

1x200

2x90/

1x180

 2.5 5

2x40/

1x80

2x80/

1x160

 2

130kw

(2500r/min)

 Water 24
TY4X30

4x30/

2x60

4x25/

2x50

 2.5 5

4x20/

2X40

4X20/

2x40

 1.25 77(103) Water 24
TY4X50

4x50/

2x200

4x40/

2x80

 2.5 5

4x20/

2x40

4x40/

2x80

 1.25 77(103) Water 24



Model Bull-wheel diameter Max conductor diameter Max optical fiber cable diameter Groove width Groove number Total weight Overall damension
mm mm mm mm   kg mm
TY2X35 1300 40     2x5 4500 4300*2250*2700
TY2X40 1300/1500 40     2x5 6230 4300*2250*2700
TY2X50 1300/1500 40     2x5 6000 4700*2300*2700
TY2X70 1700 40     2x6 7500 4700*2300*2700
TY2X70IV 1500 40     2x8 10000 5500*2280*2700
TY2X80 1850 48.75     2x6 10000 5520*2280*2850
TY2X90 1900 50     2x6 7500 5400*2300*2700
TY4X30 1300 40     4x5 11000 5900*2300*2500
TY4X50 1500 40     4x5 13000 5900*2300*2700



Main configuration

  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main motor:German Rexroth/French Leduc
  4. Speed reducer: German Rexroth
  5. Hydraulic meter: German
  6. Operating handle: German Rexroth



Configuration

  1. 2 negative self-acting hydraulic brakes
  2. 2 hydraulic dynamometers
  3. Hydraulic oil cooling system
  4. 2 digital meter counters
  5. 2 digital speed meters
  6. Control instruments for hydraulic system and diesel engine
  7. Rigid axle for towing at max speed of 30km/h with mechanical parking brake
  8. Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
  9. Grounding connection point



Hydraulic Transmission

  1. The machine can realize step less speed.
  2. The machine is provided with tension presetting system.

Additional Devices

  1. Lighting system for the trailer
  2. 2 hydraulic rope/conductor clamp (extra charge)
  3. Swivel guide rope roller
  4. Trailer for towing at max speed of 30 km/h
  5. Digital speed and meter counter
  6. Air brake system for the trailer
