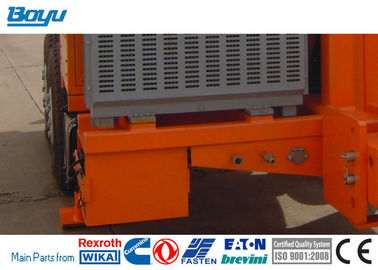

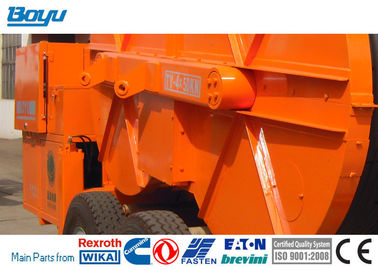

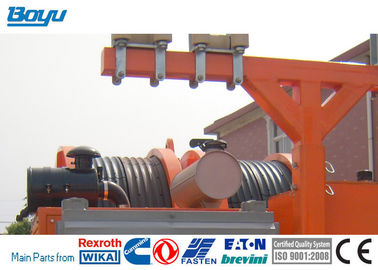

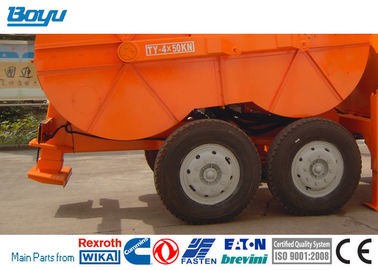

4x50 (2x100) KN Tension Stringing Equipment , Hydraulic Cable Tensioner

4x50 (2x100) KN Tension Stringing Equipment , Hydraulic Cable Tensioner
4x50 (2x100) KN Tension Stringing Equipment , Hydraulic Cable Tensioner
video play

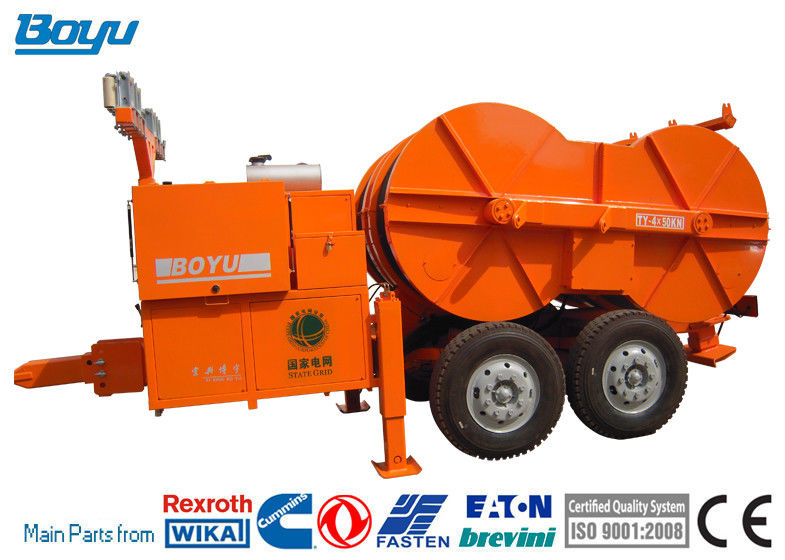

Large Image :  4x50 (2x100) KN Tension Stringing Equipment , Hydraulic Cable Tensioner

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY4x50-25
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Max Tension: 4x50 (2x100) KN Speed At Max Continue Tension: 2.5km/h
Engine: Cummins Diesel: 77kw(103hp)
Overall Dimension (LxWxH): 5900×2300×2700mm Total Weight: 13000kg
High Light:

transmission line stringing equipment

,

cable line tensioner

Tension Stringing Equipment 4x50 (2x100) KN Quad Bundled Conductor Hydraulic Tensioner Cummins Engine



Quick Details

  1. Bull-wheel diameter: 1500mm
  2. Groove number: 4X5
  3. Max conductor diameter: 40mm
  4. Total weight: 13000kg
  5. Overall dimension (LxWxH): 5900×2300×2700mm
  6. Max tension: 4x50 (2x100) KN
  7. Max continue tension: 4x40(2x80) KN
  8. Speed at max continue tension: 2.5km/h
  9. Max feeding speed: 5km/h
  10. Corresponding tension: 4x20 (2X40) KN
  11. Max reverse pulling force: 4X40kN /2x80kN
  12. Max reverse pulling speed:1.25km/h
Main configuration
  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main motor:German Rexroth/French Leduc
  4. Speed reducer: German Rexroth
  5. Hydraulic meter: German
  6. Operating handle: German Rexroth



Configuration
  1. 4 negative self-acting hydraulic brakes
  2. 4 hydraulic dynamometers
  3. Hydraulic oil cooling system
  4. 4 digital speed and meters counter
  5. Control instruments for hydraulic system and diesel engine
  6. Rigid axle for towing at max speed of 30km/h with parking brake
  7. Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
  8. Hydraulic front and behind stabilizer
  9. Grounding connection point



4x50 (2x100) KN Tension Stringing Equipment , Hydraulic Cable Tensioner 0



Model

Max

intermittent tension

 Max continuous tension Speed at max tension Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
kN kN km/h km/h kN kN km/h kw(hp)   V
TY1X30   30 2.5 5 15 20   12(16)   12
TY1X40 45 40 2.5 5 20 35   77(103) Water 24
TY1X50 50 40 2.5 5 25 45 2.4 77(103) Water 24
TY140IV 1x140 1x120 2.5 5 35 1x120 1.2 77(103) Water 24
TY2X35

2x40/

1x80

2x35/

1x70

 2.5 5

2x20/

1x40

2x30/

1x60

 5 77(103) Water 24
TY2X40

2x45/

1x90

2x40/

1x80

 2.5 5

2x20/

1x40

2x35/

1x70

 5 77(103) Water 24
TY2X50

2x55/

1x110

2x50/

1x100

 2.5 5

2x25/

1x50

2x45/

1x90

 5 77(103) Water 24
TY2X70

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2x70IV

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2X90

2x100/

1x200

2x90/

1x180

 2.5 5

2x40/

1x80

2x80/

1x160

 2

130kw

(2500r/min)

 Water 24
TY4x50

4x50/

2x200

4x40/

2x80

 2.5 5

4x20/

2x40

4x40/

2x80

 1.25 77(103) Water 24


4x50 (2x100) KN Tension Stringing Equipment , Hydraulic Cable Tensioner 1
