Alloy Steel Manual Pull Lift Small Chain Hoist Capacity 50 Ton Smooth Rotation

China Alloy Steel Manual Pull Lift Small Chain Hoist Capacity 50 Ton Smooth Rotation supplier
Alloy Steel Manual Pull Lift Small Chain Hoist Capacity 50 Ton Smooth Rotation supplier Alloy Steel Manual Pull Lift Small Chain Hoist Capacity 50 Ton Smooth Rotation supplier

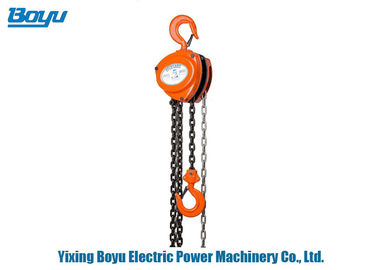

Large Image :  Alloy Steel Manual Pull Lift Small Chain Hoist Capacity 50 Ton Smooth Rotation

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO 9001
Model Number: HSZ-50A

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 15~30 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets/Month
Contact Now
Detailed Product Description
OEM Serive: YES Lifting Chain Number: 22
Package Dimensions: 110x100x130cm Hand Pull When Fully Loaded: 435x2(244.3x2)N(KG)
Test Load: 625KN Net Weight: 1092KG
Rated Load Lifting Capacity: 50Ton Standard Lifting Height: 3m
Type: Chain Hoist Lifting Chain Diameter: 10mm





Alloy Steel Small Size Hand Chain Block Manual Pull Lift Chain Hoist Capacity 50 Ton



Description

  • The overall bearing is adopted, which greatly improves the performance, service life and easy maintenance of the product.
  • Double pawl and stamping guide chain plate (double guide wheel structure selection) are more safe and reliable.
  • Designed and manufactured according to the standard of En13157. The main components and the performance of the whole machine are strictly checked and tested. The reliability of the product is greatly improved and the use is safe.
  • It adopts low-alloy structural steel plate , which is safe, reliable and durable.
  • The structure is compact and reasonable, the whole machine runs smoothly, and the appearance is beautiful and novel.
  • Smooth rotation, high efficiency and small manual tension.
  • Using 800Mpa high-strength lifting chain and forged hook design to ensure slow lifting to prevent overload.It meets European CE safety standards. High safety factor and long service life.
  • This product has been widely used in nuclear power, thermal power, power transmission and transformation.
  • The unique overload device (the use of one-way clutch) patent technology for selection.
  • Small size, light weight and easy to carry.
  • The shell material is high-quality alloy steel, strong and wearable, high safety performance.
Model HSZ-0.5A HSZ-1A HSZ-1.5A HSZ-2A HSZ-3A HSZ-5A HSZ-10A HSZ-20A HSZ-30A HSZ-50A
rated load lifting capacity ton 0.5 1 1.5 2 3 5 10 20 30 50
Standard lifting height m 2.5 2.5 2.5 3 3 3 3 3 3 3
Test load KN 6.3 12.5 18.7 25 37.5 63 125 250 375 625
Hand pull when fully loaded N(KG)

200

(20.5)

304

(31)

343

(35)

410

(41.8)

343

(35)

414

(42.2)

423

(43.2)

435x2

(44.3x2)

435x2

(244.3x2)

435x2

(244.3x2)

Lifting chain number 1 1 1 1 2 2 4 8 12 22
Lifting chain diameter mm 6 6 8 8 8 10 10 10 10 10

Main dimensions

mm

A 113 126 141 141 141 163 163 191 312 496
B 125 147 183 183 183 215 404.5 595 691 958
C 255 306 368 368 486 616 750 1000 1380 2578
D 36 40 45 50 58 64 85 110 110 170
K 30 34 38 41 48 52 64 85 81 125
Net weight kg 8.5 11 18 18.5 27 42 83 193 220 1092
Package dimensions cm 26*19*14

26*

21*15

33*

26*16

33*

26*16

33*

27*16

43*

34*19

50*

41*21

64*

38*64

72*50*68 110*100*130
Increase in weight per 1 meter increase in height kg 1.7 1.7 2.3 2.3 3.7 5.3 9.7 19.4 28.2 50.2
