Hydraulic Fiber Optic Cable Pulley , Cable Laying Rollers Wire Block And Tackle Wheel Width 50mm-1040mm

Hydraulic Fiber Optic Cable Pulley , Cable Laying Rollers Wire Block And Tackle Wheel Width 50mm-1040mm
Hydraulic Fiber Optic Cable Pulley , Cable Laying Rollers Wire Block And Tackle Wheel Width 50mm-1040mm

Large Image :  Hydraulic Fiber Optic Cable Pulley , Cable Laying Rollers Wire Block And Tackle Wheel Width 50mm-1040mm

Product Details:
Place of Origin: YIXING
Brand Name: BOYU
Certification: ISO9001
Model Number: SHDN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Container
Delivery Time: 10000 pcs /month.
Payment Terms: L/C, T/T
Detailed Product Description
Meterial: Stainless Steel, Aluminum, Nylon Connection: Hook Or Pin
Application: Electric Power Construction Surface Treatm: Galvanized Steel Frame
Wheel Width: 50mm-1040mm Wheel Diameter: 120mm-1040mm
High Light:

line stringing pulley

,

conductor stringing pulley

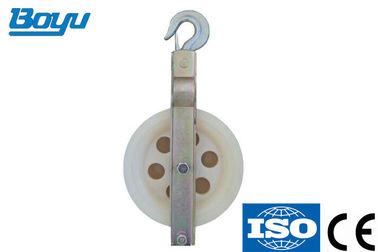

Hydraulic Fiber Optic Cable Pulley , Cable Laying Rollers Wire Block And Tackle



Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.

We manufacture a lot of models Cable pulling block for different uses in the overheadtransmission lineconstruction.They have are used to support conductors, OPGW,ADSS, communication lines.



Features:

1.Good wear-resistance,no deformation,long life cycle and so on.

2.We are an OEM supplier specializing in varous casting,forgings and machining

3.The quality of our products have all passed the international standards.

4.The processed products are exported to Asia, Europe, Africa, the United States and other countries.Hydraulic Fiber Optic Cable Pulley , Cable Laying Rollers Wire Block And Tackle Wheel Width 50mm-1040mm 0

Different type have diffeent specifications:



Model Wheel size Diameter x Width (mm) Conductor size (mm2) Rated load (kN) Weight (kg) Wheel material
SHDN-120X30 120x30 25~70 5 1.5 Nylon
SHDN-160X40 160X40 95~120 10 2.3 Nylon
SHDN-200X40 200X40 150~240 15 2.5 Nylon
SHDN-200X60 200X60 150~240 15 3.0 Nylon
SHDN-250X40 250X40 150~240 20 3.6 Nylon
SHDN-250X60 250X60 300~400 20 3.8 Nylon
SHDN-270X60 270X60 300~400 20 4.3 Nylon
SHDN-320X60 320X60 300~400 20 7.5 Nylon
SHDN-400X80 400X80 400~500 20 8 Nylon
Model Wheel size Diameter x Width (mm) Conductor size (mm2) Rated load (kN) Weight (kg) Wheel material
SHD-120X30 120x30 25~70 5 2.1 Aluminum
SHD-160X40 160X40 95~120 10 3.1 Aluminum
SHD-200X40 200X40 150~240 15 3.7 Aluminum
SHD-200X60 200X60 150~240 15 4.1 Aluminum
SHD-250X40 250X40 150~240 20 5.1 Aluminum
SHD-250X60 250X60 300~400 20 5.4 Aluminum
SHD-270X60 270X60 300~400 20 6.7 Aluminum
SHD-320X60 320X60 300~400 20 10.4 Aluminum
SHD-400X80 400X80 400~500 20 11.9

Aluminum





Company Introduction
Jiangsu Province Yixing City, Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

Overhead transmission line stringing equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.
