Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints

Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints
Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints

Large Image :  Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYSLW-3
Payment & Shipping Terms:
Minimum Order Quantity: 10set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port)
Detailed Product Description
Type: Single Head Type Temporary Mesh Sock Joints Conductor Size (mm2): 300~400
Rated Load (kN): 30 Breaking Load (kN): 60
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment

Rated Load 30kN Single Head Type Temporary Mesh Sock Joints Transmission Line Stringing Accessories Tools

Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Temporary Mesh Sock Joints
3. Rated Load: 30kN
4. Conductor size: 300~400mm2
5. Type: One head
6. Breaking Load: 60kN


Description:

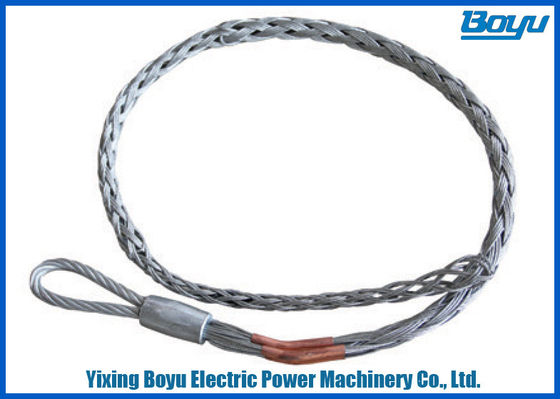

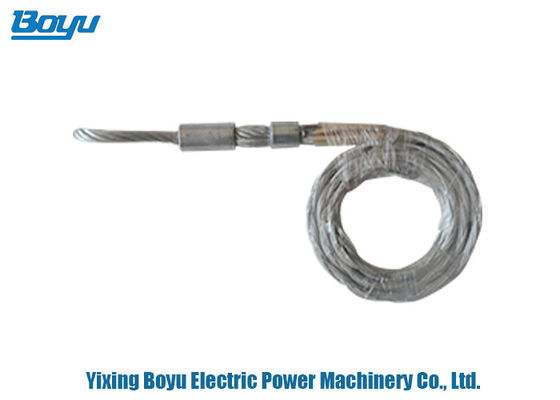

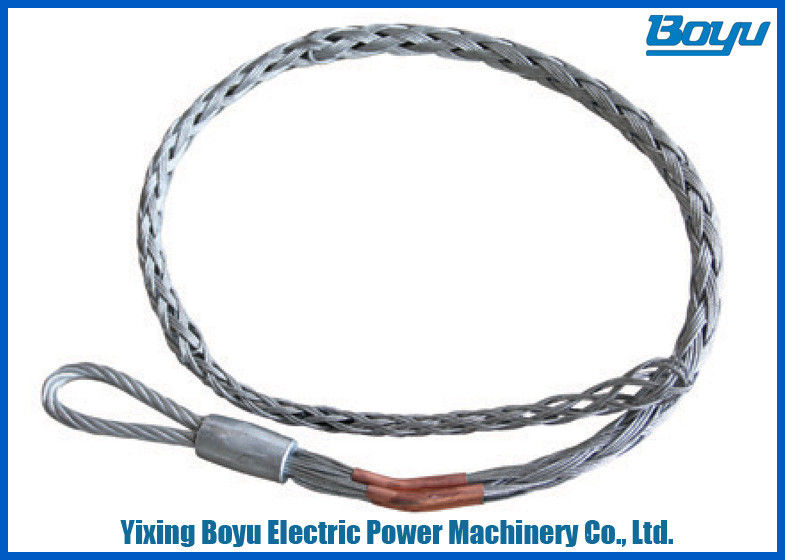

The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.


Specification:

Model

Conductor size (mm2)

Rated load (kN)

Breaking load (kN)

SLW-1.5

70~90

15

30

SLW-2

120~150

20

40

SLW-2.5

185~240

25

50

SLW-3

300~400

30

60

SLW-4

500~630

40

80

SLW-5

720

50

125

SLW-7

900

70

175

SLW-8

1000~1120

80

200


More Pictures
Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 0Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 1

Maufacturer Introduction

Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.



China Jiangsu Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near Shanghai, Nanjin, Hangzhou City, about 1~2 hours by Train.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Line Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system



History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.

Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 2Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 3Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 4



Quality Guarantee
We have one year quality guarantee, if internal components go wrong within one year, we will change another for free. We can supply the specific components to the buyers with cost price after warranty period.



Container Loading

Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 5Transmission Line Stringing Accessories Tools Rated Load 30kN Single Head Type Temporary Mesh Sock Joints 6


Rated Load 30kN Single Head Type Temporary Mesh Sock Joints Transmission Line Stringing Accessories Tools
