| Nominal Disc Diameter: | 255mm | Nominal Creepage Distance: | 295mm |
|---|---|---|---|
| Tension Load By Tension: | 35kN | Test Voltage To Ground: | 10kv |
| Crushing Load: | 565N.cm | Type: | Suspension Porcelain Insulator |
| High Light: | powerline tools,transmission tools and equipment |
||

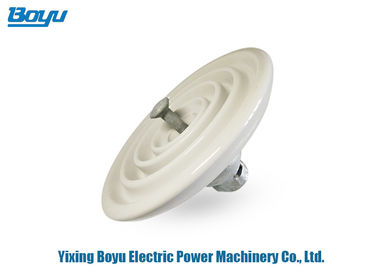

High Voltage Suspension Type Insulator , Electric Transmission Line Insulators
Quick Detail
| Model | Rated electromechanical failure load kn | Tension load by tension kN | Crushing load N.cm | power frequency withstand voltage kv | Lightning shocks dry withstand voltage kv | Power frequency breakdown voltage | radio interference voltage | Weight kg | ||
| Dry | Wet | Test voltage to ground kv | 1MHZ max radio interference voltage Μv | |||||||
| BY-U40C | 40 | 20 | 565 | 55 | 30 | 75 | 90 | 7.5 | 50 | 2.9 |
| 40 | 20 | 565 | 55 | 30 | 75 | 90 | 7.5 | 50 | 3.4 | |
| BY-U70BL | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.8 |
| BY-U70C | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.7 |
| 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.6 | |
| BY-U70BS | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.6 |
| BY-U70BL | 70 | 35 | 565 | 50 | 30 | 100 | 110 | 10 | 50 | 3.7 |
| 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 4.9 | |
| BY-U70C | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 5.1 |
| BY-U70BL | 70 | 35 | 565 | 70 | 40 | 100 | 110 | 10 | 50 | 5.1 |
| BY-U100BL | 100 | 50 | 678 | 70 | 40 | 100 | 110 | 10 | 50 | 5.8 |
| 100 | 50 | 678 | 70 | 40 | 100 | 120 | 10 | 50 | 6.1 | |
| BY-U100CL | 100 | 50 | 678 | 70 | 40 | 100 | 110 | 10 | 50 | 5.8 |
| BY-U120B | 120 | 60 | 678 | 70 | 40 | 100 | 110 | 10 | 50 | 6.1 |
| 120 | 60 | 678 | 70 | 40 | 100 | 120 | 10 | 50 | 6.6 | |
| BY-U160B | 160 | 80 | 1017 | 70 | 40 | 100 | 110 | 10 | 50 | 6.8 |
| BY-U160BS | 160 | 80 | 1017 | 70 | 40 | 100 | 110 | 10 | 50 | 6.8 |
| 160 | 80 | 1017 | 75 | 42 | 105 | 110 | 10 | 50 | 7.6 | |
| BY-U210B | 210 | 105 | 1017 | 75 | 42 | 105 | 120 | 10 | 50 | 9.8 |
| 210 | 105 | 1017 | 75 | 42 | 105 | 120 | 10 | 50 | 9.4 | |
| 210 | 105 | 1017 | 75 | 42 | 105 | 120 | 10 | 50 | 9.8 | |
| BY-U240B | 240 | 120 | 1017 | 75 | 45 | 110 | 120 | 10 | 50 | 11.4 |
| BY-U300B | 300 | 150 | 1017 | 75 | 45 | 110 | 120 | 10 | 50 | 13.5 |
The disc type suspended porcelain insulator is used for insulation and fixed wires in the high voltage overhead transmission and distribution line. Insulator strings are usually assembled from insulator elements for use on circuits of different voltage levels.
Insulator according to the connection points ball type and trough type two kinds.
The same strength grade of regular and fouling resistance type insulator, using the same size ball and socket connections, can guarantee the swap.
High voltage line pollution resistant disc suspension porcelain insulator is suitable for industrial dust, chemical industry, salt and alkali, coastal and foggy areas, for high voltage overhead transmission and distribution lines on the insulation and fixed wire, It is generally assembled into insulator string for different voltage levels, different pollution areas on the power line. Pollution-resistant insulators can be divided into three types according to their umbrella structure: double umbrella type, bell jar type and straw hat type.
