Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor

China Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor supplier
Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor supplier Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor supplier Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor supplier Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor supplier

Large Image :  Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY280-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
After Sales Service: Available OEM: Available
Max Pull: 280kn Engine: Cummins 298kw
Main Pump & Reducer: German Rexroth Electric Systerm: 24v

Cummins 298kw 280KN Hydraulic Wire Puller With German Rexroth Pump Reducer and Motor

Quick details:

1.Transmission Line Stringing Equipment
2.280KN Hydraulic Wire Puller
3. Max pull: 280kN
4.Corresponding pulling force: 120KN
5. Engine: Cummins 298kw
6. Main pump & Reducer: German Rexroth
7. Operating handle: German Rexroth
8. Boyu Brand

Structure parameter

Puller wheel diameter: 960mm
Groove number: 11
Max diameter of applicable steel wire rope : 38mm
Max diameter of coupling : 100mm
Electric systerm: 24V
Max diameter of applicable wire coil: 1600mm
Total weight: 12800kg
overall dimension (length*width*height): 5800×2500×2850mm

TY280-1 Hydraulic Puller

This machine is mainly applied in long-span and mountainous areas
and foothills for tension stringing of 4 bundle conductor of 500kV or twin bundle conductor of 220kV
and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.

Performance parameter

Max intermittent pulling force : 280KN
Max continous pulling force: 250KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 120KN

Main configurations
Engine:Cummins
Main pump: German Rexroth
Main moterspeed reducer : German Rexroth
Operating handle: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur


Performance parametermax inMax intermittent pulling force280kn
 Max continous pulling force250kn
 Corresponding speed2.5km/h
 Max continous pulling speed5km/h
 Corresponding pulling force120KN
Structure parameterPuller wheel diameter960mm
 Groove number11
 Max diameter of applicable wire coil:1600mm
Main comfigurationsEngineCummins
 Main pumpGerman Rexroth


Additional Devices

  1. Lighting system for the trailer
  2. Air brake system for the trailer
  3. Hydraulic rope clamp for reel change(extra charge)
  4. Swivel guide rope roller
  5. Trailer for towing at max speed of 30 km/h
  6. Extra shaft
  7. Digital speed and meter counter

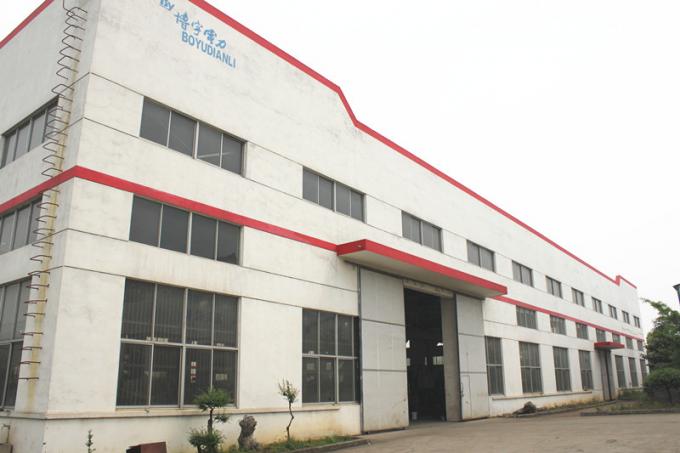

Company instruction

      Founded in 1993, Yixing city power machinery factory
      Established in 1997, Yixing city Boyu power machinery Co., LTD
      In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
      In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
      In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
      In 2009 reworded significant achievement in Wuxi city
      In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
      In 2010 achieved the national ministry of science and technology innovation in science and technology project.
     To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.

Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor

Our service

Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and MotorQuality, loyalty and service is our faith!

1.Deemed continuous improvement as our permanent pursuits.

2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.

3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.

4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.

5. 24-hour hot line: 86-0510-80329270. Once receive the customer’s enquiry , we will response within 24 hours.

6.Do the best 280KN Hydraulic Wire Puller Transmission Line Stringing Equipment in China.

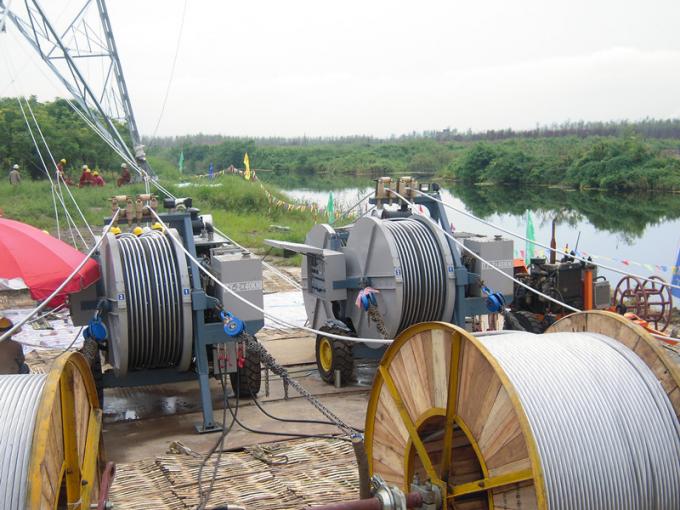

Work site

Cummins 298kw 280KN Hydraulic Conductor Puller With German Rexroth Pump Reducer and Motor
