Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine

China Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine supplier
Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine supplier Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine supplier Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine supplier Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine supplier Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine supplier

Large Image :  Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY90-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
After Sales Service: Available OEM: Available
Engine: Cummins 118kw Main Pump: German Rexroth
Main Reducer: German Rexroth Max Pull: 90kN

Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine

Quick details:

1.Transmission Line Stringing Equipment
2.Groove number 8  Hydraulic Cable Pull machinery
3.Max pull: 90kN
4.Engine: Cummins 118kw
5.Main pump : German Rexroth
6.Main Reducer:: German Rexroth
7.Operating handle: German Rexroth
8.Boyu Brand

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur

TY90 Hydraulic Puller

This machine allows for the tension stringing of twin-bundle conductor of 500mm2
and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2
and below in flat lands, and of single conductor 720mm2 in various terrains;
besides, it can be used for traction stringing of OPGW or ADSS optical cable
and 220kV haulage rope in various terrains.

Performance parameter

Max intermittent pulling force : 90KN
Max continous pulling force: 80KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 40KN

Performance parameter max inMax intermittent pulling force 90kn
  Max continous pulling force 80kn
  Corresponding speed 2.5km/h
  Max continous pulling speed 5km/h
  Corresponding pulling force 40KN
Structure parameter Puller wheel diameter 540mm
  Groove number 8
  Max diameter of applicable wire coil: 1400mm
Main comfigurations Engine Cummins
  Main pump German Rexroth


Structure parameter

Puller wheel diameter: 540mm
Groove number: 8
Max diameter of applicable steel wire rope : 21mm
Electric systerm: 24V
Max diameter of applicable wire coil: 1400mm
Total weight: 4000kg
overall dimension (length*width*height): 4000×2200×2100mm

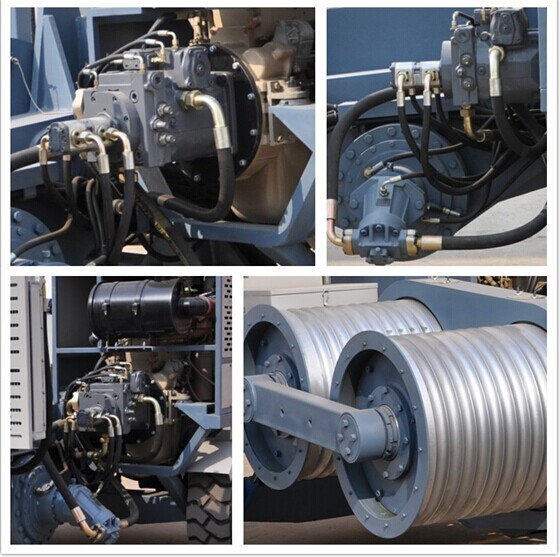

Main configurations

Engine:Cummins
Main pump: German Rexroth
Main moterspeed reducer : German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA

Additional Devices

  1. Lighting system for the trailer
  2. Hydraulic rope clamp for reel change(extra charge)
  3. Swivel guide rope roller
  4. Trailer for towing at max speed of 30 km/h
  5. Extra shaft
  6. Digital speed and meter counter


Company instruction

      Founded in 1993, Yixing city power machinery factory
      Established in 1997, Yixing city Boyu power machinery Co., LTD
      In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
      In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
      In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
      In 2009 reworded significant achievement in Wuxi city
      In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
      In 2010 achieved the national ministry of science and technology innovation in science and technology project.
     To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.

Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine


Customer visting

Groove Number 8 Hydraulic Cable Pull machinery 90kN with 118kw Cummins Engine

1.Deemed continuous improvement as our permanent pursuits.

2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.

3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.

4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.

5.Once receive the customer’s enquiry , we will response within 24 hours.

6.Do the best Groove number 8 Hydraulic Cable Pull machinery in China.
