325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment

China 325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier
325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier 325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier 325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier 325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier 325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier 325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment supplier

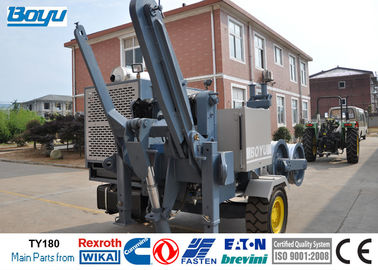

Large Image :  325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Product Name: 190KN Stringing Hydraulic Cable Laying Puller After Sales Service: Available
OEM: Available Engine: Cummins 325hp
Max Pull: 190kn Max Continous Pulling Speed: 6km/h
Corresponding Pulling Force: 75kn Max Diameter Of Applicable Steel Wire Rope: 28mm

190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment


Quick details:

1.Transmission Line Stringing Equipment
2.190KN Stringing Hydraulic Cable Laying Puller
3. Max pull: 190kN
4. Engine: Cummins
5. Main Parts from: German Rexroth
6. German WIKA

7. Operating handle: German Rexroth

8. Boyu Brand

Use:

The machine allows for the tension stringing of 4-bundle conductor of 630mm2
and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2
and below in flat lands; besides,
it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Performance parameter

Max intermittent pulling force :190KN
Max continous pulling force:180KN
Corresponding speed:2.5km/h
Max continous pulling speed:6km/h
Corresponding pulling force:75KN

Structure parameter

Puller wheel diameter:750mm
Groove number:10
Max diameter of applicable steel wire rope :28mm
Electric systerm:24V
Max diameter of applicable wire coil:1400mm
Total weight:6700kg
overall dimension:5000x2300x2500mm

Main comfigurations

Engine:Cummins

Operating handle: German Rexroth
hydraulic pump:German Rexroth
Main moter:German Rexroth
Speed reducer :German Rexroth
Hydraulic meter: German WIKA



Performance parameter Max intermittent pulling force 190KN
  Max continous pulling force 180KN
  Corresponding speed 2.5km/h
Structure parameter Puller wheel diameter 750mm
  Groove number 10
  Max diameter of applicable steel wire rope 28mm
Main comfigurations Engine Cummins
  Hydraulic pump

German
Rexroth

  Hydraulic meter German WIKA


Additional Devices

  1. Lighting system for the trailer
  2. Hydraulic rope clamp for reel change(extra charge)
  3. Swivel guide rope roller
  4. Trailer for towing at max speed of 30 km/h
  5. Extra shaft
  6. Digital speed and meter counter


Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur

Company instruction

      Founded in 1993, Yixing city power machinery factory
      Established in 1997, Yixing city Boyu power machinery Co., LTD
      In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
      In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
      In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
      In 2009 reworded significant achievement in Wuxi city
      In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
      In 2010 achieved the national ministry of science and technology innovation in science and technology project.
     To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.

325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment

Work site

325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment

Customer visting

325hp 190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment

1.Deemed continuous improvement as our permanent pursuits.
2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.
3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
5.Once receive the customer’s enquiry , we will response within 24 hours.
6.Do the best 180KN Stringing Hydraulic Cable Laying Puller in China.
