Hydraulic Electric 9Tons Tension Stringing Equipment 2 x 45kN With Two Bundle Conductor
Quick details
1. Hydraulic Electric Tension Stringing Equipment
2. Tensioner With Two Bundle Conductor
3. Main pump and motor and speed reducer: German Rexroth
4.Max conductor diameter: 40mm
5. Bull-wheel diameter: 1300/1500mm
6. Max tension: 2x45kN/90kN 9Tons
7. Hydraulic meter: German
8. Diesel: Cummins 77kw 103hp
9. Boyu Brand
Characteristics
Main configuration
Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Engine
Performance
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Additional Devices
·Lighting system for the trailer
·2 hydraulic rope/conductor clamp(extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter
Configuration
More Photos
Manufacturer Introduction
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system
|

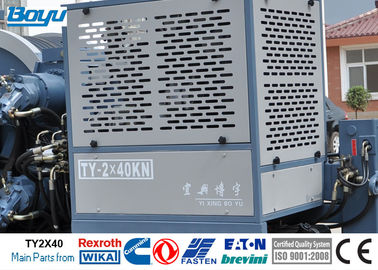

TY2x40 Hydraulic Tensioner The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains |
|
|
Characteristics Bull-wheel diameter: 1300/1500mm Max conductor diameter: 40mm Groove number: 2x5 Total weight: 5800kg Overall dimension (length*width*height): 4300×2250×2700mm |
Performance Max intermittent pull: 2x45kN Max continuous pull: 2x40kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 2x20kN Max reverse pulling force: 2x35kN Max reverse pulling speed: 5km/h |
|
Main configuration Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth |
Engine Diesel 77kw(103hp) Cooling system water Electrical system 24V |
|
Hydraulic Transmission The machine can realize step less speed. The machine is provided with tension presetting system. |
|
|
Configuration Hydraulic dynamometers Hydraulic oil cooling system Digital speed and meter counter Hydraulic front stabilizer Grounding connection point Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor |
Additional Devices Lighting system for the trailer 2 hydraulic rope/conductor clamp(extra charge) Swivel guide rope roller Trailer for towing at max speed of 30 km/h Digital speed and meter counter |
