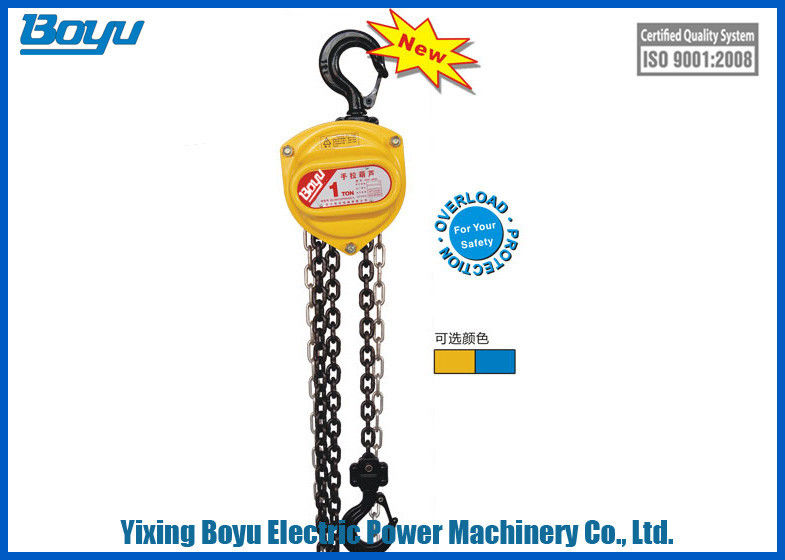

Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn

Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn
Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn

Large Image :  Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYHSC
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets/month
Price Terms: FOB(Shanghai) or CIF (assigned port
Detailed Product Description
OEM: Available After Sales Service: Available
Rated Load: 62.5kn Rated Lifting Weight: 5t
Rated Lifting Height: 3m Weight: 37kg
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment





Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn



Quick details:

  1. Transmission Line Stringing Equipment Accessories & Tools
  2. TYHSD Chain hoist
  3. Rated load 62.5kn
  4. Other colors available
  5. Standard lifting height  3m
  6. Boyu Brand



Description:



The lifting hoist are made of steel and equipped with mechanical brake; they are designed to facilitate and accelerate chain positioning operations. Chains with different lengths are available on demand.





Specification:



Model   TYHSC-1A TYHSC-2A TYHSC-3A TYHSC-5A
Rated lifting weight t 1 2 3 5
Rated lifting height m 3 3 3 3
Rated load kn 12.5 25 37.5 62.5
Hand pull fully loaded n(kg) 275(28) 387(39.5) 416(42.5) 375(38)
Lifting chain number   1 1 2 2
Lifting chain Dia. mm 6 8 7.1 9

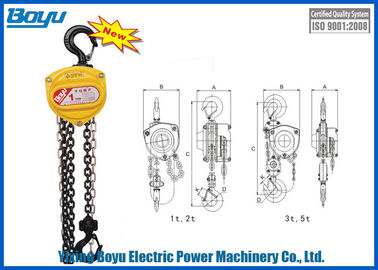

Main size (mm) A 133 178 155 164
B 150 154 197 253
C 325 395 450 603
D 38 48 50 64
K 28 35 40 50
Weight Kg 11 18.5 24 37
Parking size Cm 23*18*20 28*21*24 32*21*26 40*21*31
Every meter lifting increase weight kg 1.57 2.3 3.2 4.6





More pictures:



Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn 0





Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn 1



Maufacturer Introduction:



Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.


We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.


1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German


2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.


Our company has a total area of 42800 square meters, having formed four series products:

  1. Line Stringing Equipment and accessories and tools.
  2. Nonmetallic galvanized the production equipment (Achieved high-tech products)
  3. Numerical control machine
  4. Low voltage no power-arc furnace compensation system



Chain Hoist Transmission Line Stringing Tools Max Rated Load 62.5kn
