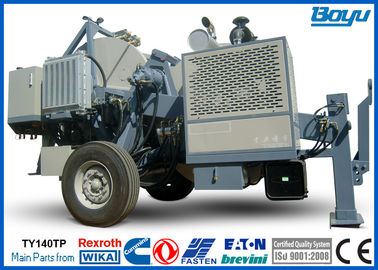

Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN

Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN
Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN
video play

Large Image :  Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY140TP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
After Sales Service: Available OEM: Available
Main Pump And Motor: German Rexroth Speed Reducer: German Rexroth
Diesel: Cummins Max Rope Diameter: 24mm
High Light:

transmission line construction equipment

,

power line stringing equipment



Max Pull 140kN 14T Overhead Line Stringing Equipment Single Conductor Hydraulic Puller Tensioner TY140TP



Quick details:
Overhead Line Stringing Equipment
Hydraulic Puller Tensioner
Main pump and motor: German Rexroth
Speed Reducer: German Rexroth
Max pull: 140kN
Diesel: Cummins 129kw(173hp)
Main pump and motor: German Rexroth
Speed Reducer: German Rexroth
Bull-wheel diameter: 1500mm
Max rope diameter: 24mm
Max conductor diameter: 40mm

Boyu Brand



Description
The machine is suitable to string one, two, three or four ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.



Main configuration
Engine: Cummins
Main pump: German Rexroth
Main motor speed reducer: German Rexroth
Hydraulic meter: German

Operating handle: German Rexroth



Performance

Max pull
Max pull: 140kN
Speed at max pull: 1.7km/h
Max speed: 4km/h
Pull at max speed: 60kN

Max tension
Max Tension: 140kN
Max Speed: 4km/h



Engine
Diesel 129kw(173hp)
Cooling system water
Electrical system 24V



Characteristics
Bull-wheel diameter: 1500mm
Max rope diameter : 24mm
Max conductor diameter: 40mm
Total weight: 6800kg
Overall dimension (length*width*height): 4700×2300×2700mm



Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls
Hydraulic front stabilizer
Grounding connection point



Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Additional Devices
Lighting system for the trailer
Hydraulic brake system for the trailer (extra charge)
2 hydraulic conductor clamps for drum change
operations (extra charge)
Electronic pull and speed recorder


Customers Visiting
Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN 0
Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN 1



Company Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

Single Conductor Hydraulic Puller Tensioner , Stringing Equipments for Overhead Line 140kN 2







Max Pull 140kN 14T Overhead Line Stringing Equipment Single Conductor Hydraulic Puller Tensioner TY140TP
